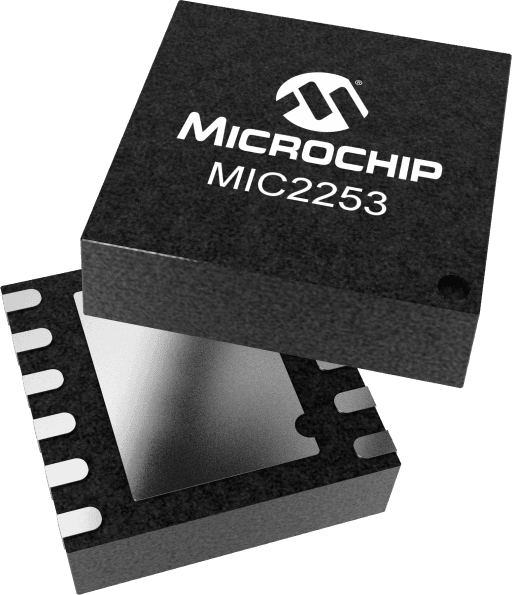

Microchip MIC2253-06YML-TR

Manufacturer No:

MIC2253-06YML-TR

Manufacturer:

Microchip

Package:

12-VFDFN Exposed Pad, 12-MLF®

Description:

3.5A 1MHz High Efficiency Boost Regulator with OVP \u0026 Softstart

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2253-06YML-TR information

Microchip MIC2253-06YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2253-06YML-TR.

Type
Parameter

Max Duty Cycle (%)
90

Input Voltage Range Max
10

Input Voltage Range Min
2.5

Output Current
4000

Driver Type
Step Up (Boost)

Quiescent Current
15

Synchronous Rectifier
No

Temp Range Max °C (degrees Celsius)
125

Temp Range Min
-40

Vout Max
30

Vfb V (volt)
1.245

VoutMin
3

Download datasheets and manufacturer documentation for Microchip MIC2253-06YML-TR.

User Guide:

463bb8f0cd0146123590db17df45c1e6.pdf

Data Sheets:

5a0ab2daaa1fdb06d2dc7ea81163d497.pdf

The MIC2253 is a high power density 1MHz PWM DC/DC boost regulator. The 3.5A minimum switch current limit combined with a 1MHz switching frequency allows the MIC2253 to use smaller inductors and deliver high power in a tiny solution size. The 2.5V to 10V input voltage range of MIC2253 allows direct operation from 1- and 2-cell Li-Ion as well as 3- to 4-cell NiCad, NiMH, Alkaline, or lithium batteries. Maximum battery life is assured with a low 0.1µA shutdown current. To prevent a high inrush current, a minimum 1ms soft-start period is set by default and the MIC2253 has the ability to extend the soft-start period with an external capacitor.

3.5A minimum switch current
1.245V ±3% feedback voltage
2.5V to 10V input voltage
Output over-voltage protection (OVP)
Externally programmable soft-start
Output voltage up to 30V (max)
Fixed 1MHz operation
<1% line regulation
0.1µA shutdown current
Over temperature protection
Under-voltage lockout (UVLO)
-40°C to +125°C junction temperature range
