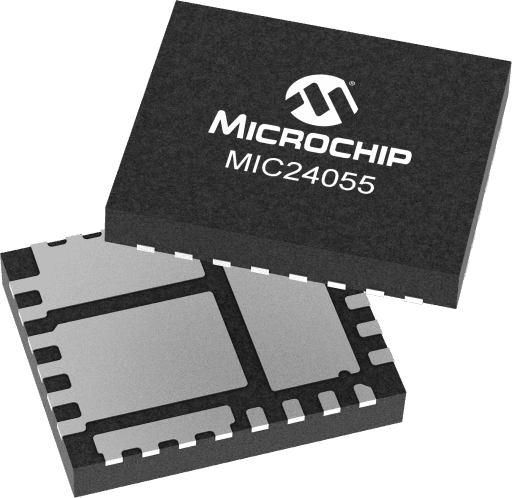

Microchip MIC24055YJL-TR
Microchip MIC24055YJL-TR

Microchip MIC24055YJL-TR

Manufacturer No:

MIC24055YJL-TR

Manufacturer:

Microchip

Package:

28-PowerVQFN

Description:

19V/12A High Efficiency DC-DC Buck Regulator

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC24055YJL-TR information

Microchip MIC24055YJL-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC24055YJL-TR.

  • Type
  • Parameter
  • Regulator Type
  • Step Down (Buck)
  • Minimum Input Voltage (V)
  • 4
  • Maximum Input Voltage (V)
  • 19
  • Output Current (mA) Max
  • 12000
  • Duty Cycle Max (%)
  • 0.82
  • Switching Frequency (kHz) kHz (kilohertz)
  • 600
  • Input Voltage Range Min
  • 4.5
  • Input Voltage Range Max
  • 19
  • Output Current
  • 12000
  • Temp Range Min
  • -40
  • Temp Range Max °C (degrees Celsius)
  • 125
  • Vout Min (V)
  • 0.8
  • Vout Max (V)
  • 5.5
  • Quiescent Current (mA) typ
  • 0.73
  • Light Load Efficiency Mode
  • No
  • Automotive Rated
  • No
  • Automotive Qualified
  • Yes
  • SHUTDOWN Current (µA) (Typ)
  • 5
  • # of Outputs
  • 1
  • Vfb V (volt)
  • 0.8
  • Synchronous Rectifier
  • Yes

Download datasheets and manufacturer documentation for Microchip MIC24055YJL-TR.

Application Notes:

Data Sheets:

The MIC24055 is a constant-frequency, synchronous buck regulator featuring a unique adaptive on-time control architecture. The MIC24055 operates over an input supply range of 4.5V to 19V and provides a regulated output of up to 12A of output current. The output voltage is adjustable down to 0.8V with a guaranteed accuracy of ±1%, and the device operates at a switching frequency of 600kHz.

Hyper Speed Control™ architecture allows for ultra-fast transient response while reducing the output capacitance and also makes (High VIN)/(Low VOUT) operation possible. This adaptive tON ripple control architecture combines the advantages of fixed-frequency operation and fast transient response in a single device.

The MIC24055 offers a full suite of protection features to ensure protection of the IC during fault conditions. These include under voltage lockout to ensure proper operation under power-sag conditions, internal soft-start to reduce inrush current, foldback current limit, "hiccup mode" short-circuit protection and thermal shutdown. An open-drain power good (PG) pin is provided. Also see the 12A HyperLight Load® part, MIC24056.



  • Hyper Speed Control™ architecture enables
  • High delta V operation (VIN = 19V and VOUT = 0.8V)
  • Small output capacitance
  • Input voltage range: 4.5V to 19V
  • Output current up to 12A
  • Up to 95% efficiency
  • Adjustable output voltage from 0.8V to 5.5V
  • ±1% feedback accuracy
  • Any Capacitor™ stable - zero-to-high ESR
  • 600kHz switching frequency
  • Power Good (PG) output
  • Foldback current-limit and "hiccup" mode short-circuit protection
  • Safe start-up into pre-biased loads
  • -40°C to +125°C junction temperature range
  • Available in 28-pin 5mm — 6mm QFN package
