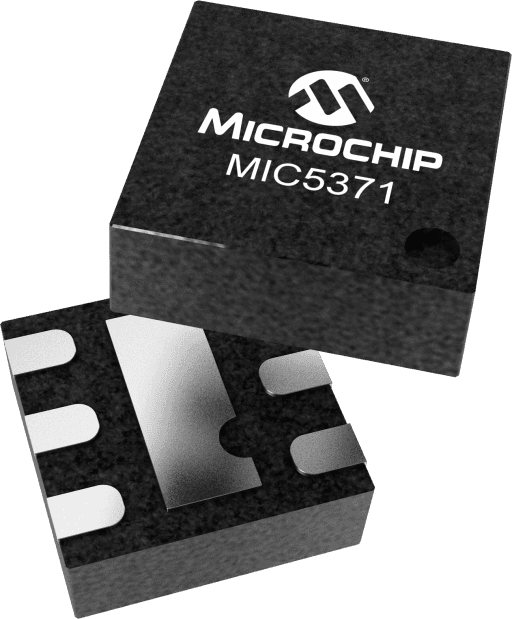

Microchip MIC5371-MGYMT-TR

Manufacturer No:

MIC5371-MGYMT-TR

Manufacturer:

Microchip

Package:

6-UFDFN Exposed Pad, 6-TMLF®

Description:

Dual 150mA LNR with Auto Discharge

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5371-MGYMT-TR information

Microchip MIC5371-MGYMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5371-MGYMT-TR.

Type
Parameter

VIN Min (V) V (volt)
2.5

VIN Max V (volt)
5.5

VOUT V (volt)
See Datasheet

IOUT #1 Max mA (milliampere)
150

IOUT #2 Max mA (milliampere)
150

Quiescent Current µA (microampere)
57

Voltage Drop Typ (mV)
155

Accuracy (+/-) %
3

Adjustable VOUT
No

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC5371-MGYMT-TR.

Data Sheets:

8f7dc4784abbeed914f838bdd0d32f23.pdf

User Guide:

7d3c6555afbeafd8a1918f652dd969f3.pdf

The MIC5370/1 is an advanced dual LDO ideal for powering general purpose portable devices. Ideal for battery-powered applications, the MIC5370/1 offers 2% initial accuracy, low dropout voltage (155mV @ 150mA) and low ground current (typically 32µA per LDO). The MIC5370/1 can also be put into a zero off-mode current state, drawing virtually no current when disabled. When the MIC5371 is disabled, an internal resistive load is automatically applied to the output to discharge the output capacitor. This LDO offers fast transient response and high PSRR while consuming a minimum operating current.

2.5V to 5.5V input voltage range
Two 150mA output current LDOs
High output accuracy: ±2% initial accuracy
Low quiescent current 32µA per LDO
Stable with 1µF ceramic output capacitors
Independent enable pins
Low dropout voltage: 155mV at 150mA
Thermal shutdown protection
Current limit protection
Output discharge circuit (MIC5371)
