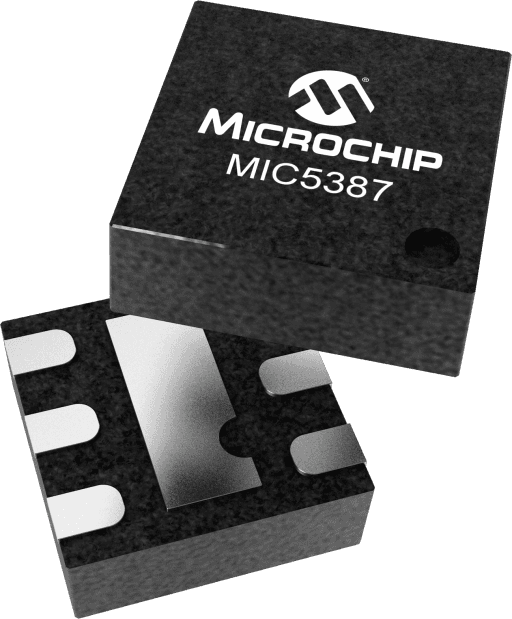

Microchip MIC5387-SG4YMT-TR

Manufacturer No:

MIC5387-SG4YMT-TR

Manufacturer:

Microchip

Package:

6-UFDFN Exposed Pad, 6-TMLF®

Description:

Triple 150mA Per Channel LDO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5387-SG4YMT-TR information

Microchip MIC5387-SG4YMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5387-SG4YMT-TR.

Type
Parameter

VIN Min (V) V (volt)
2.5

VIN Max V (volt)
5.5

VOUT V (volt)
1.8/2.8/1.8, 1.8/2.8/2.8, 3.3/1.8/1.2, 3.3/1.8/1.5

IOUT #1 Max mA (milliampere)
150

IOUT #2 Max mA (milliampere)
150

Quiescent Current µA (microampere)
96

Voltage Drop Typ (mV)
180

Accuracy (+/-) %
3

Adjustable VOUT
No

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC5387-SG4YMT-TR.

Data Sheets:

4bee2f7f6cc7f4993a2345b8b8668c8c.pdf

The MIC5387 is capable of 150mA from each output and offers high PSRR, making it an ideal solution for any portable electronic application. Ideal for battery powered applications, the MIC5387 offers 2% initial accuracy, low dropout voltage (180mV @ 150mA), and low ground current (typically 32µA per output).

The MIC5387 has an operating junction temperature range of -40°C to +125°C.

Input voltage range: 2.5V to 5.5V
150mA guaranteed output current for each output
Stable with ceramic output capacitors
Low dropout voltage: 180mV @ 150mA
Excellent Load/Line Transient Response
Low quiescent current: 32µA per LDO
High PSRR: 70dB
High output accuracy
±2% initial accuracy
Thermal-shutdown and current-limit protection
