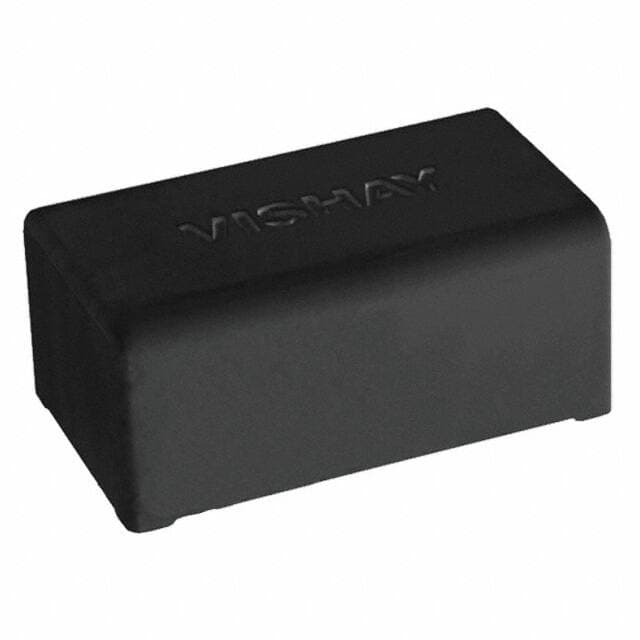

VISHAY MKP1848S62070JP4F
VISHAY MKP1848S62070JP4F

VISHAY MKP1848S62070JP4F

Manufacturer No:

MKP1848S62070JP4F

Manufacturer:

VISHAY

Package:

Radial - 4 Leads

Description:

MKP1848S 20?F Film Capacitor ±5% Radial - 4 Leads PC Pins 700V-DC Polypropylene (PP), Metallized Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MKP1848S62070JP4F information

VISHAY MKP1848S62070JP4F technical specifications, attributes, parameters and parts with similar specifications to VISHAY MKP1848S62070JP4F.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial - 4 Leads
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • Polypropylene (PP), Metallized
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • MKP1848S
  • Size / Dimension
  • 1.654Lx1.535W 42.00mmx39.00mm
  • Tolerance
  • ±5%
  • JESD-609 Code
  • e3
  • Feature
  • Low ESR; Low ESL; Long Life
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • PC Pins
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • DC Link, DC Filtering
  • Capacitance
  • 20?F
  • Voltage - Rated DC
  • 700V
  • Depth
  • 39mm
  • Lead Pitch
  • 37.4904mm
  • ESR (Equivalent Series Resistance)
  • 4mOhm
  • Lead Spacing
  • 1.476 37.50mm
  • Height
  • 24mm
  • Height Seated (Max)
  • 0.945 24.00mm
  • Length
  • 42mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY MKP1848S62070JP4F.

Datasheets:

RohsStatement:

MKP1848S62070JP4F Overview


In the device, ESR (Equivalent Series Resistance) is 4mOhm.Lead spacing is 1.476 37.50mm for this electrical device.Devices with a -40°C~105°C temperature capability can be operated.

MKP1848S62070JP4F Features


4mOhm equivalent series resistance (ESR)


MKP1848S62070JP4F Applications


There are a lot of Vishay BC Components
MKP1848S62070JP4F applications of film capacitors.


  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
