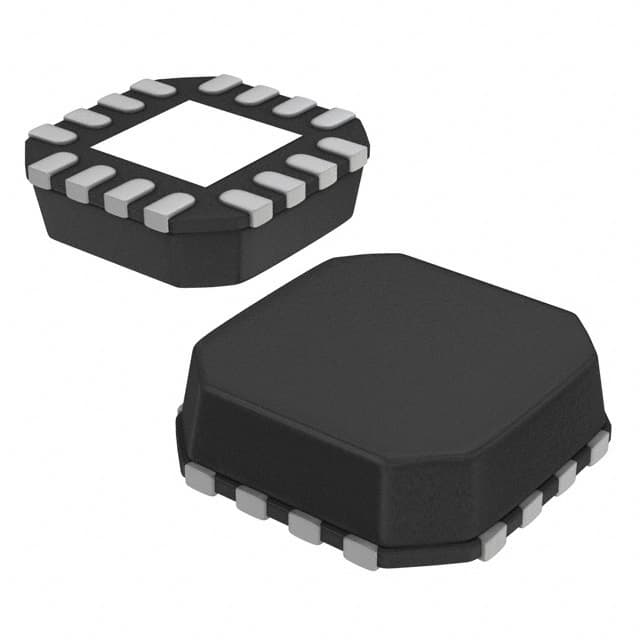

NXP MMG3006NT1

Manufacturer No:

MMG3006NT1

Manufacturer:

NXP

Package:

16-VQFN Exposed Pad

Description:

17.5dB Cellular, PCS, PHS, WLL WIDE BAND HIGH POWER Tape & Reel (TR) 400MHz~2.4GHz 5V P1dB:33dBm 6.6dB Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MMG3006NT1 information

NXP MMG3006NT1 technical specifications, attributes, parameters and parts with similar specifications to NXP MMG3006NT1.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
16-VQFN Exposed Pad

Surface Mount
YES

Packaging
Tape & Reel (TR)

Published
2010

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.33.00.01

Subcategory
RF/Microwave Amplifiers

Technology
BIPOLAR

Voltage - Supply
5V

Number of Functions
1

Construction
COMPONENT

Frequency
400MHz~2.4GHz

Power Supplies
5V

Test Frequency
900MHz

Current - Supply
850mA

Gain
17.5dB

RF/Microwave Device Type
WIDE BAND HIGH POWER

Input Power-Max (CW)
28dBm

Characteristic Impedance
50Ohm

Noise Figure
6.6dB

P1dB
33dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MMG3006NT1.

MMG3006NT1 Overview

The RF amplifier is a cost-effective WIDE BAND HIGH POWER RF/Microwave device.The RF amplifier has type Cellular, PCS, PHS, WLL RF.A high level of reliability is provided by using an advanced RF Amp' packaging Tape & Reel (TR).The RF power Amplifier ships overseas conveniently packed in 16-VQFN Exposed Pad.In order to mount Amplifiers RF, it is recommended to follow the Surface Mount axis.Amplifiers RFs with 5V voltage capabilities can be used.It has 1 total function(s).For its operation, 850mA is the supply RF Amplifiers' current.A variety of 16 terminations are available.RF Amplifier is a special type of RF/Microwave Amplifiers.

MMG3006NT1 Features

WIDE BAND HIGH POWER RF/Microwave Amplifier
RF Type Cellular, PCS, PHS, WLL
5V voltage
850mA current

MMG3006NT1 Applications

There are a lot of NXP USA Inc.
MMG3006NT1 RF Amplifiers applications.

Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
Wireless communications
ISM applications
