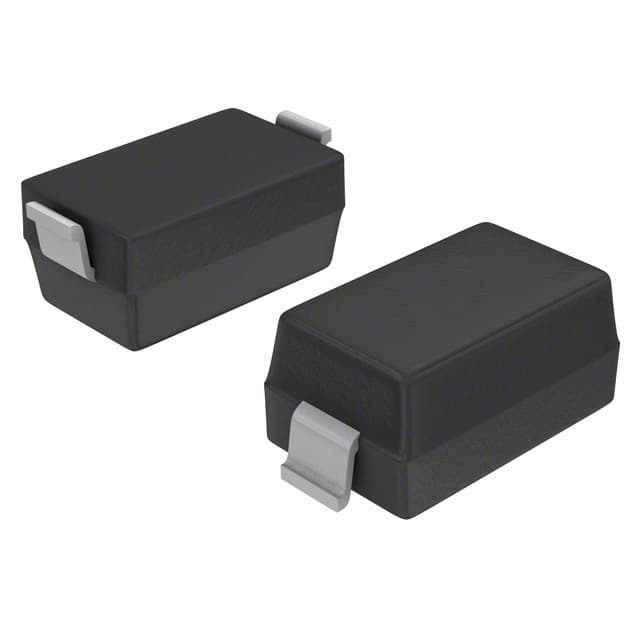

DIODES MMSZ5248B-7-F

Manufacturer No:

MMSZ5248B-7-F

Manufacturer:

DIODES

Package:

SOD-123, 2 PIN

Description:

Zener Diode, 18V V(Z), 5%, 0.37W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MMSZ5248B-7-F information

DIODES MMSZ5248B-7-F technical specifications, attributes, parameters and parts with similar specifications to DIODES MMSZ5248B-7-F.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
DIODES INC

Package Description
SOD-123, 2 PIN

Pin Count
2

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8541.10.00.50

Samacsys Manufacturer
Diodes Incorporated

Configuration
SINGLE

Diode Element Material
SILICON

Diode Type
ZENER DIODE

Dynamic Impedance-Max
21 Ω

Forward Voltage-Max (VF)
0.9 V

JESD-30 Code
R-PDSO-G2

JESD-609 Code
e3

Knee Impedance-Max
600 Ω

Moisture Sensitivity Level
1

Number of Elements
1

Number of Terminals
2

Operating Temperature-Max
150 °C

Operating Temperature-Min
-65 °C

Package Body Material
PLASTIC/EPOXY

Package Style
SMALL OUTLINE

Peak Reflow Temperature (Cel)
260

Polarity
UNIDIRECTIONAL

Power Dissipation-Max
0.37 W

Qualification Status
Not Qualified

Reference Voltage-Nom
18 V

Reverse Current-Max
0.1 µA

Reverse Test Voltage
14 V

Surface Mount
YES

Technology
ZENER

Terminal Finish
MATTE TIN

Terminal Form
GULL WING

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
10

Voltage Tol-Max
5%

Working Test Current
7 mA

Download datasheets and manufacturer documentation for DIODES MMSZ5248B-7-F.

MMSZ5248B-7-F Overview

An electrical device like this requires a reverse leakage current of 100nA @ 14V.A maximum voltage (Tol) can be supplied if 5% is set.During reverse leakage, the maximum current reaches 100nA.Design flexibility is enhanced by its zener current of 100nA.For operation, diode reaches 900mV @ 10mA at the maximum voltage - Forward (Vf).This device requires a reverse test voltage of 14V.For full functionality, this device should have a reverse voltage peak of 100nA.

MMSZ5248B-7-F Features

reverse leakage current of 100nA @ 14V
100nA @ 14V is the maximum voltage (Tol)
Reverse leakage current reaches 100nA
the zener current of 100nA

MMSZ5248B-7-F Applications

There are a lot of Diodes Incorporated
MMSZ5248B-7-F applications of zener single diodes.
