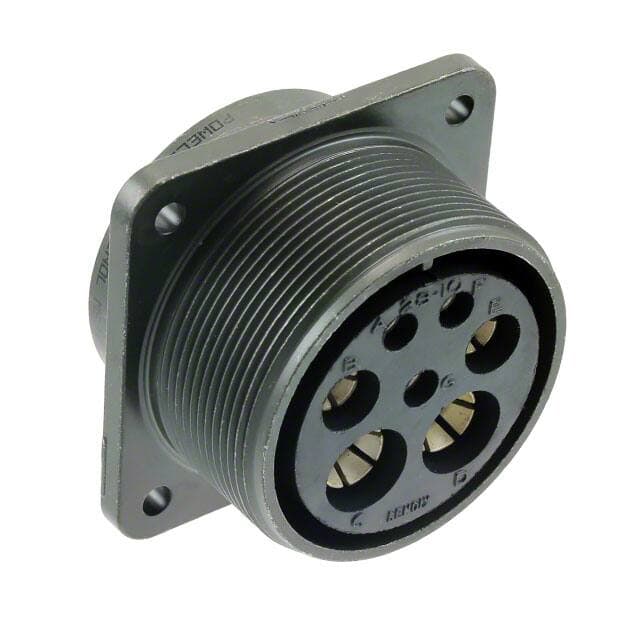

Amphenol MS3102E28-10S
Amphenol MS3102E28-10S

Amphenol MS3102E28-10S

Manufacturer No:

MS3102E28-10S

Manufacturer:

Amphenol

Package:

Description:

Receptacle, Female Sockets Aluminum Alloy Panel Mount 7 Positions Solder Cup Silver Olive Drab Chromate over Cadmium Bulk N (Normal) Threaded

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MS3102E28-10S information

Amphenol MS3102E28-10S technical specifications, attributes, parameters and parts with similar specifications to Amphenol MS3102E28-10S.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Box, Flanges, Panel
  • Mounting Type
  • Panel Mount
  • Mounting Feature
  • Flange
  • Shell Material
  • Aluminum Alloy
  • Insert Material
  • Neoprene
  • Body Material
  • Aluminium
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Bulk
  • Series
  • MIL-5015 Type
  • Published
  • 2001
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder Cup
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 7
  • Color
  • Olive Drab
  • Applications
  • Marine, Military
  • Gender
  • Receptacle
  • HTS Code
  • 8536.69.40.20
  • Fastening Type
  • Threaded
  • Contact Finish - Mating
  • Silver
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • YES
  • Option
  • GENERAL PURPOSE
  • Total Number of Contacts
  • 7
  • Orientation
  • N (Normal)
  • Shielding
  • Unshielded
  • Ingress Protection
  • Environment Resistant
  • Depth
  • 50.8mm
  • Military Standard
  • MIL-DTL-5015
  • Shell Finish
  • Olive Drab Chromate over Cadmium
  • Shell Size - Insert
  • 28-10
  • Contact Gender
  • Female
  • Empty Shell
  • NO
  • Backshell Type
  • SOLID
  • Contact Style
  • Socket
  • Plating
  • Cadmium, Chromate
  • Body Plating
  • Cadmium
  • Cable Opening
  • 1.625 (41.28mm)
  • Length
  • 38.88mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No

Download datasheets and manufacturer documentation for Amphenol MS3102E28-10S.

Datasheets:

MS3102E28-10S Overview


The packaging contains Receptacle, Female Sockets.There is a Panel Mount mounting type for the device.This product is packaged in a case marked Bulk.Product number MIL-5015 Type belongs to the MIL-5015 Type Series.There is a Box, Flanges, Panel mount on the part.This device operates at a temperature of -55°C~125°C.

MS3102E28-10S Features


MIL-5015 Type series


MS3102E28-10S Applications


There are a lot of Amphenol Industrial Operations
MS3102E28-10S Circular Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
