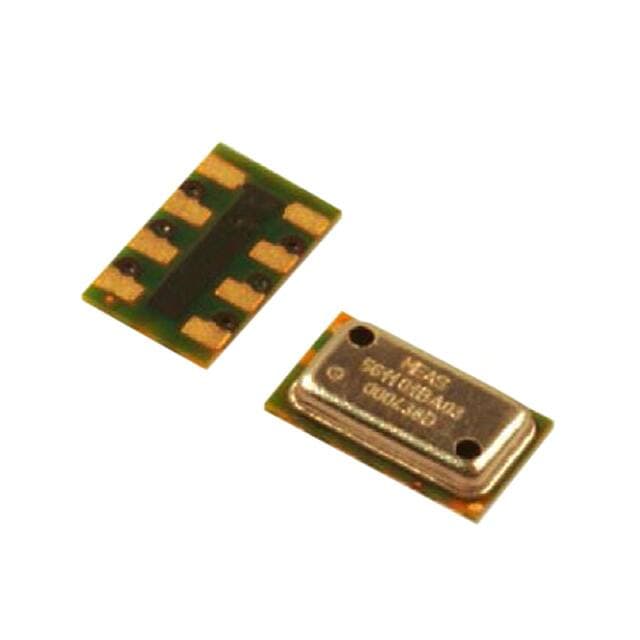

TE Connectivity MS561101BA03-50

Manufacturer No:

MS561101BA03-50

Manufacturer:

TE Connectivity

Package:

8-SMD

Description:

Absolute Pressure Sensor I2C, SPI -40°C~85°C 0.15PSI ~ 17.4PSI (1kPa ~ 120kPa) No Port ±0.022PSI (±0.15kPa) 24 b 1.8V~3.6V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MS561101BA03-50 information

TE Connectivity MS561101BA03-50 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity MS561101BA03-50.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 5 days ago)

Factory Lead Time
10 Weeks

Mount
Surface Mount

Package / Case
8-SMD

Number of Pins
8

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2015

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
Board Mount

Voltage - Supply
1.8V~3.6V

Output
24 b

Termination Style
SMD (SMT) Tab

Body Breadth
3 mm

Output Voltage
3.6V

Output Type
I2C, SPI

Operating Supply Voltage
3V

Interface
I2C, SPI

Operating Supply Current
12.5?A

Nominal Supply Current
12.5?A

Number of Bits
24

Accuracy
±0.022PSI (±0.15kPa)

Pressure Type
Absolute

Port Style
No Port

Resolution
3 B

Maximum Pressure
87.02PSI (600kPa)

Sensors/Transducers Type
PRESSURE SENSOR,PEIZORESISTIVE

Pressure Range-Max
17.404 Psi

Body Height
1mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TE Connectivity MS561101BA03-50.

MS561101BA03-50 Overview

For convenience, this transducer is included in the 8-SMD package. The temperature of the transducers should be set to -40°C~85°C to ensure reliable performance. The transducers can operate well with a supply voltage of 1.8V~3.6V. For the transducers to work properly, 8 pins must be connected in order to make it work. The maximum pressure range set by this transducer is 17.404 Psi. This electronic component comes in the package of a Tape & Reel (TR). The transducers can have a normal operation with nominal supply current of 12.5?A. The voltage released by the transducers should be 3.6V to make it work.

MS561101BA03-50 Features

Moisture Sensitivity Level: 1 (Unlimited)
Package / Case: 8-SMD
Operating Temperature: -40°C~85°C
8 Pins
Operating Pressure: 0.15PSI ~ 17.4PSI (1kPa ~ 120kPa)
Operating Supply Voltage: 3V

MS561101BA03-50 Applications

There are a lot of TE Connectivity Measurement Specialties
MS561101BA03-50 Transducers applications.

General Purpose
Process Control
Altitude Control of Drones and Flying Toys
Mobile Phones
Virtual Reality and Gaming Equipment
Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
Vertical velocity monitoring
Leisure, Sports, and Fitness Activity Identification
Weather Forecasting
Hydrogen Storage
