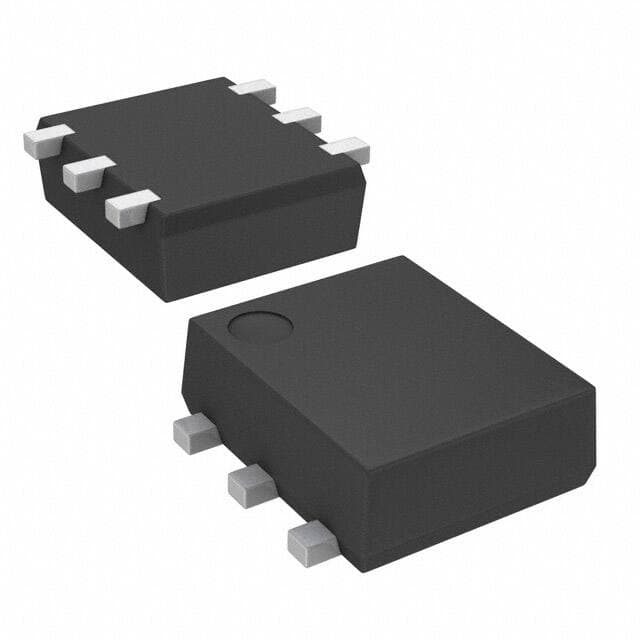

PANASONIC MTM763200LBF

Manufacturer No:

MTM763200LBF

Manufacturer:

PANASONIC

Package:

6-SMD, Flat Leads

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MTM763200LBF information

PANASONIC MTM763200LBF technical specifications, attributes, parameters and parts with similar specifications to PANASONIC MTM763200LBF.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
6-SMD, Flat Leads

Number of Pins
6

Transistor Element Material
SILICON

Operating Temperature
150°C TJ

Packaging
Tape & Reel (TR)

JESD-609 Code
e6

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Terminal Finish
TIN BISMUTH

Max Power Dissipation
700mW

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
MTM76320

Number of Elements
2

Element Configuration
Dual

Operating Mode
ENHANCEMENT MODE

Power Dissipation
700mW

FET Type
N and P-Channel

Rds On (Max) @ Id, Vgs
105m ? @ 1A, 4V

Vgs(th) (Max) @ Id
1.3V @ 1mA

Input Capacitance (Ciss) (Max) @ Vds
280pF @ 10V

Current - Continuous Drain (Id) @ 25°C
1.9A 1.2A

Drain to Source Voltage (Vdss)
20V

Polarity/Channel Type
N-CHANNEL AND P-CHANNEL

Continuous Drain Current (ID)
1.2A

Gate to Source Voltage (Vgs)
10V

Drain Current-Max (Abs) (ID)
1.9A

Drain-source On Resistance-Max
0.105Ohm

DS Breakdown Voltage-Min
20V

FET Technology
METAL-OXIDE SEMICONDUCTOR

FET Feature
Standard

Nominal Vgs
850 mV

Height
600?m

Length
2mm

Width
1.7mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for PANASONIC MTM763200LBF.

Datasheets:

panasonicelectroniccomponents-mtm763200lbf-datasheets-1533.pdf

The Panasonic Transistors - FETs, MOSFETs - Arrays MTM763200LBF is a MOSFET (Metal Oxide Semiconductor Field Effect Transistor) with a N-channel type and a 20V voltage rating. It is part of the WSMINI6-F1-B series and is designed for use in a variety of applications.

Features of the Panasonic Transistors - FETs, MOSFETs - Arrays MTM763200LBF include a low on-resistance of 0.0075 ohms, a low gate charge of 0.7nC, and a high current rating of 1.2A. It also has a low input capacitance of 0.7pF and a high switching speed of 1.2ns.

The Panasonic Transistors - FETs, MOSFETs - Arrays MTM763200LBF is suitable for use in a variety of applications, including power management, motor control, and switching applications. It is also suitable for use in automotive, industrial, and consumer electronics applications.
