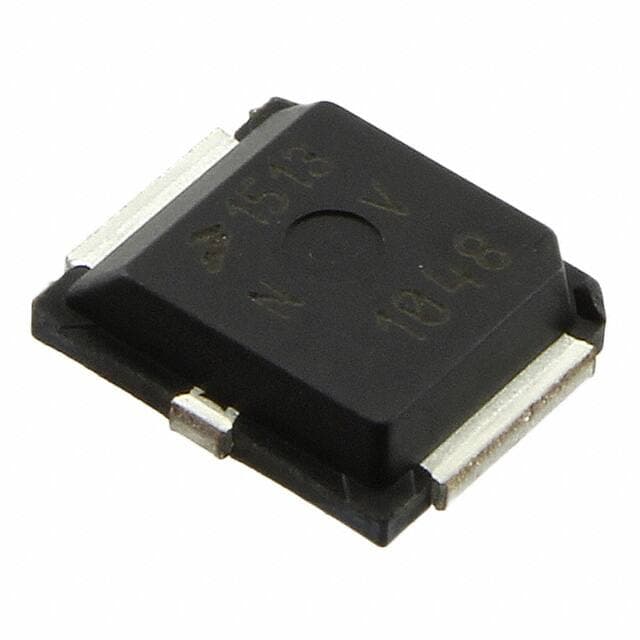

NXP MW6S004NT1

Manufacturer No:

MW6S004NT1

Manufacturer:

NXP

Package:

PLD-1.5

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MW6S004NT1 information

NXP MW6S004NT1 technical specifications, attributes, parameters and parts with similar specifications to NXP MW6S004NT1.

Type
Parameter

Factory Lead Time
10 Weeks

Package / Case
PLD-1.5

Surface Mount
YES

Transistor Element Material
SILICON

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
4

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Voltage - Rated
68V

HTS Code
8541.29.00.75

Subcategory
FET General Purpose Power

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Frequency
1.96GHz

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
MW6S004

JESD-30 Code
R-PQSO-N4

Qualification Status
Not Qualified

Operating Temperature (Max)
150°C

Configuration
SINGLE

Operating Mode
ENHANCEMENT MODE

Case Connection
SOURCE

Current - Test
50mA

Transistor Application
AMPLIFIER

Polarity/Channel Type
N-CHANNEL

Transistor Type
LDMOS

Gain
18dB

DS Breakdown Voltage-Min
68V

Power - Output
4W

FET Technology
METAL-OXIDE SEMICONDUCTOR

Voltage - Test
28V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MW6S004NT1.

MW6S004NT1 Description

MW6S004NT1 is an N-channel MOS field-effect RF power transistor designed to be used in 50V large signal applications. The special low thermal resistance packaging makes MW6S004NT1 suitable for ISM applications in which reliability and durability are essential. NXP USA Inc. MW6S004NT1 has the common source configuration.

MW6S004NT1 Features

Gold metalization

Excellent thermal stability

Common source configuration

Thermally enhanced packaging for lower junction temperatures

MW6S004NT1 Applications

ISM applications

DC large signal applications
