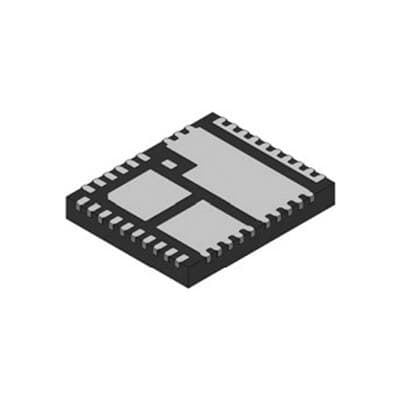

ONSEMI NCP303151MNTWG

Manufacturer No:

NCP303151MNTWG

Manufacturer:

ONSEMI

Package:

39-PowerVFQFN

Description:

Surface Mount Tape & Reel (TR) Active Gate Drivers ICs Non-Inverting 2 30V V 39-PowerVFQFN High-Side or Low-Side

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP303151MNTWG information

ONSEMI NCP303151MNTWG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP303151MNTWG.

Type
Parameter

Factory Lead Time
15 Weeks

Mounting Type
Surface Mount

Package / Case
39-PowerVFQFN

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Terminal Finish
Tin (Sn)

Voltage - Supply
4.5V~5.5V

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Analog IC - Other Type
SWITCHING REGULATOR

Input Type
Non-Inverting

Rise / Fall Time (Typ)
17ns 26ns

Channel Type
Single

Number of Drivers
2

Driven Configuration
High-Side or Low-Side

Gate Type
N-Channel MOSFET

Current - Peak Output (Source, Sink)
100mA 100mA

Logic Voltage - VIL, VIH
0.65V 2.7V

High Side Voltage - Max (Bootstrap)
30V

Download datasheets and manufacturer documentation for ONSEMI NCP303151MNTWG.

Datasheets:

onsemiconductor-ncp303151mntwg-datasheets-1451.pdf

NCP303151MNTWG Overview

There is greater flexibility with the 39-PowerVFQFN package.The packaging method is indicated by Tape & Reel (TR).A total of 2 drivers are integrated into its configuration.Surface Mount is mounted in the way.By using 4.5V~5.5V supply voltage, it is able to demonstrate its superiority.The gate type on this device is N-Channel MOSFET.This device allows temperatures in the range of -40°C~125°C TJ.A type of Non-Inverting is used for input in this program.Mosfet driver is possible to set the high-side voltage - Max (Bootstrap) to 30V.As a result, it has adopted SWITCHING REGULATOR as its analog integrated circuit.

NCP303151MNTWG Features

Embedded in the Tape & Reel (TR) package
2 drivers
Employing a gate type of N-Channel MOSFET
High-side voltage - Max (Bootstrap) of 30V

NCP303151MNTWG Applications

There are a lot of ON Semiconductor
NCP303151MNTWG gate drivers applications.

Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
Motor Controls
DC-DC Converters
AC-DC Inverters

User Guide
