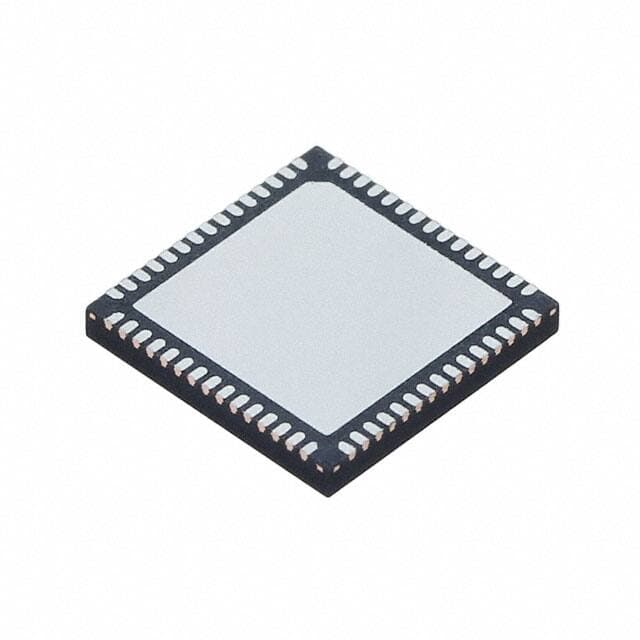

ONSEMI NCP6132ADMNR2G
ONSEMI NCP6132ADMNR2G

ONSEMI NCP6132ADMNR2G

Manufacturer No:

NCP6132ADMNR2G

Manufacturer:

ONSEMI

Package:

60-VFQFN Exposed Pad

Description:

Controller, Intel IMVP-7, VR12? 0.25V~1.52V Specialized Voltage Regulator NCP6132 600kHz 60-VFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP6132ADMNR2G information

ONSEMI NCP6132ADMNR2G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP6132ADMNR2G.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 60-VFQFN Exposed Pad
  • Supplier Device Package
  • 60-QFN (7x7)
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2016
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 100°C
  • Min Operating Temperature
  • -10°C
  • Applications
  • Controller, Intel IMVP-7, VR12?
  • Base Part Number
  • NCP6132
  • Number of Outputs
  • 2
  • Output Current
  • 6.25A
  • Voltage - Output
  • 0.25V~1.52V
  • Switching Frequency
  • 600kHz
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ONSEMI NCP6132ADMNR2G.

Datasheets:

ReachStatement:

NCP6132ADMNR2G Description


The NCP6132ADMNR2G dual output three plus two-phase buck solution is optimized for Intel IMVP?7 and VR12 compatible CPUs.The controller combines true differential voltage sensing, differential inductor  DCR  current sensing,  input voltage feed?forward,  and adaptive voltage positioning to provide accurately regulated power for both Desktop and Notebook applications. The control system is based on Dual?Edge pulse?width modulation (PWM) combined with DCRcurrent sensing providing the fastest initial response to dynamic load events and reduced system cost. It also sheds to a single phase during light load operation and can auto frequency scale in light load while maintaining excellent transient performance.



NCP6132ADMNR2G Features


  • Dynamic Reference Injection

  • Meets Intel?s VR12/IMVP7 Specifications

  • One Digital Soft Start Ramp for Both Rails

  • Accurate Total Summing Current Amplifier

  • DAC with Droop Feed?forward Injection

  • Dual High-Performance Operational Error Amplifier

  • Current Mode Dual Edge Modulation for Fastest Initial Response transient Loading

  • Three Phase CPU Voltage Regulator, and Two-Phase AuxiliaryVoltage Regulator, with Three Internal MOSFET Drivers in Total



NCP6132ADMNR2G Applications


  • Desktop & Notebook Processors
