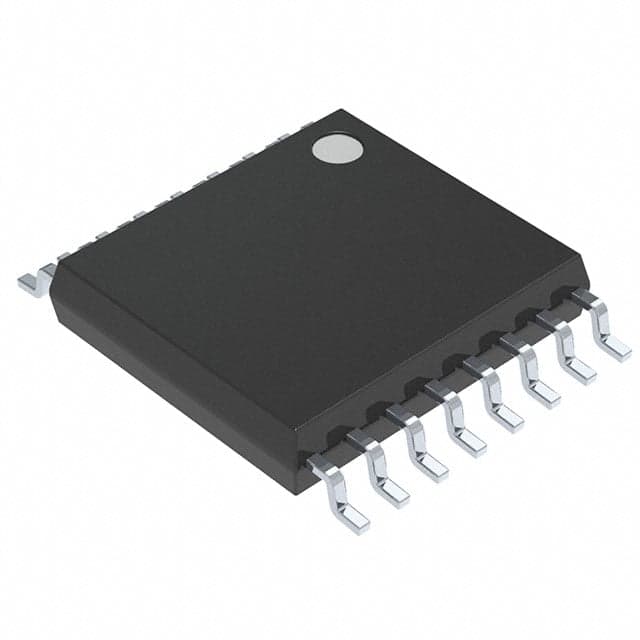

ONSEMI NCV75215DB001R2G
ONSEMI NCV75215DB001R2G

ONSEMI NCV75215DB001R2G

Manufacturer No:

NCV75215DB001R2G

Manufacturer:

ONSEMI

Package:

Description:

Ultrasonic Parking Distance Measurement ASSP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCV75215DB001R2G information

ONSEMI NCV75215DB001R2G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCV75215DB001R2G.

  • Type
  • Parameter
  • Case Outline
  • 948
  • MSL Temp (°C)
  • 260
  • Container Qty.
  • 4000
  • Number of Input Channels
  • 1
  • Operating Temperature Range (°C)
  • 85
  • Package Type
  • TSSOP-16 WB
  • MSL Type
  • 3
  • Container Type
  • REEL
  • Operating Frequency Range (kHz)
  • 35 - 90
  • Supply Voltage Max (V)
  • 18
  • Supply Voltage Min (V)
  • 6
  • Interface Type
  • IO Line

Download datasheets and manufacturer documentation for ONSEMI NCV75215DB001R2G.

Datasheet:

Package Drawing:

The NCV75215 ASSP is intended to operate with a piezoelectric ultrasonic transducer to provide time-of-flight measurement of an obstacle distance during vehicle parking. The high-sensitivity, low-noise operation allows detection from 0.25 m up to 4.5 m for a standard 75 mm pole. The device drives the ultrasonic transducer with a programmable frequency via a transformer. The received echo is amplified and converted to a digital signal, filtered, detected and the magnitude is compared to a time-dependent threshold which is stored in an internal RAM. A bidirectional I/O Line is used to communicate with a master (ECU). The master issues I/O Line commands to the NCV75215 and data are reported back via the same line.

Application

  • Automotive Park Assist
  • Automotive Emergency Brake
  • Automotive blind Spot Detection
  • Ultrasonic Distance Measurements

End Product

  • Park Assist Sensor

Feature

  • Acoustic Noise Monitoring
  • Transducer Resonant Period Measurement
  • Diagnosis of Transducer Performance
  • Junction Temperature Monitoring and Thermal Shutdown
  • Transducer Center Frequency Range from 35 to 90 kHz
  • Direct and Indirect Measurement Modes
  • Rx Gain Adjustable in 0.5 dB Steps in the Range from 50 to 110 dB
  • Time-dependent Threshold Values for the Sensitivity Control
  • Dynamic (Time-dependent) Gain Control
  • Tx Current Range Adjustable from 50 mA to 350 mA
  • Programmable Ultrasonic Burst Length
  • On-chip Bidirectional I/O Line

User Guide
