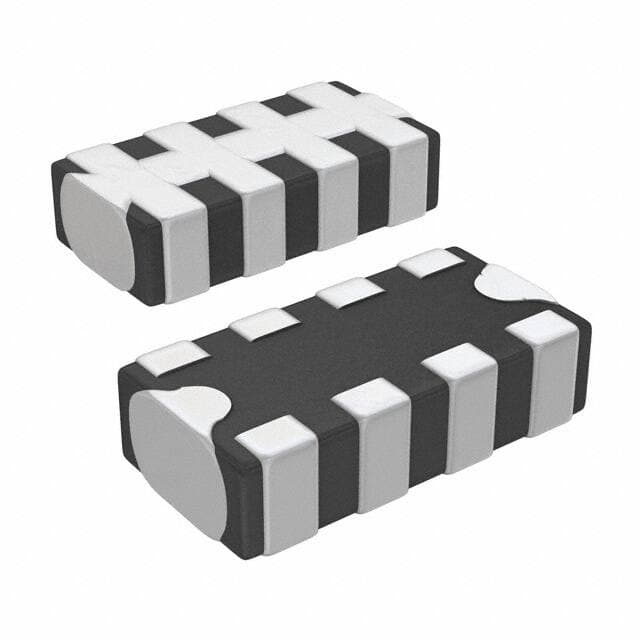

MURATA NFA31CC470S1E4D

Manufacturer No:

NFA31CC470S1E4D

Manufacturer:

MURATA

Package:

1206 (3216 Metric), 10 PC Pad

Description:

EMIFIL®, NFA31 Series 47pF ±20% 10 Terminations 1206 (3216 Metric), 10 PC Pad Tin (Sn) 25V Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NFA31CC470S1E4D information

MURATA NFA31CC470S1E4D technical specifications, attributes, parameters and parts with similar specifications to MURATA NFA31CC470S1E4D.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
1206 (3216 Metric), 10 PC Pad

Packaging
Tape & Reel (TR)

Series
EMIFIL®, NFA31

Size / Dimension
0.126Lx0.063W 3.20mmx1.60mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

Termination
Flat

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Composition
Ceramic

Additional Feature
ARRAY TYPE

Capacitance
47pF

Voltage - Rated DC
25V

Packing Method
TAPE AND REEL

Number of Functions
4

Terminal Pitch
800?m

Current Rating
200mA

Case Code (Metric)
3216

Case Code (Imperial)
1206

Physical Dimension
L3.2XB1.6XH0.8 (mm)

Voltage
25V

Number of Circuits
4

Max Current Rating
200mA

DC Resistance (DCR)
400mOhm

Current
200mA

Max Voltage Rating (DC)
25V

Circuit Type
Bussed

Filter Type
FEED THROUGH CAPACITOR

Height
990.6?m

Height Seated (Max)
0.039 1.00mm

Length
3.2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for MURATA NFA31CC470S1E4D.

NFA31CC470S1E4D Overview

Sitting at 0.039 1.00mm height, the maximum height is reached.0.126Lx0.063W 3.20mmx1.60mm is its size/dimension.In a 1206 (3216 Metric), 10 PC Pad case, the product is packaged.800?m is the terminal pitch of this part.A voltage of 25V is required for the operation of this electrical part.

NFA31CC470S1E4D Features

the maximal height is 0.039 1.00mm
with the size / dimension of 0.126Lx0.063W 3.20mmx1.60mm
a 800?m terminal pitch

NFA31CC470S1E4D Applications

There are a lot of Murata Electronics
NFA31CC470S1E4D applications of capacitor networks.

Professional electronics
High density consumer electronics
