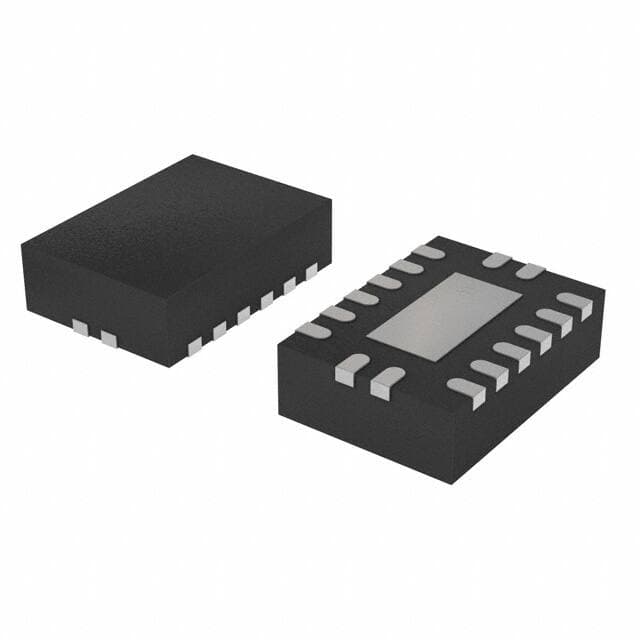

NXP NVT2006BQ,115

Manufacturer No:

NVT2006BQ,115

Manufacturer:

NXP

Package:

16-VFQFN Exposed Pad

Description:

Surface Mount Tape & Reel (TR) Voltage Translators & Level Shifters 1 Voltage Level 16-VFQFN Exposed Pad Active 14 Weeks Weeks 1 (Unlimited)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NVT2006BQ,115 information

NXP NVT2006BQ,115 technical specifications, attributes, parameters and parts with similar specifications to NXP NVT2006BQ,115.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
16-VFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2003

Feature
Auto-Direction Sensing

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Additional Feature
TOTEM OUTPUT CHARACTERISTIC ALSO POSSIBLE

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
NVT2006

Pin Count
16

Output Type
Open Drain, Push-Pull

Supply Voltage-Min (Vsup)
1V

Number of Circuits
1

Output Characteristics
OPEN-EMITTER

Output Polarity
TRUE

Interface IC Type
GTL TO TTL TRANSCEIVER

Channel Type
Bidirectional

Translator Type
Voltage Level

Voltage - VCCA
1V~3.6V

Voltage - VCCB
1.8V~5.5V

Channels per Circuit
6

Supply Voltage1-Max
5.5V

Output Latch or Register
NONE

Length
3.5mm

Width
2.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP NVT2006BQ,115.

NVT2006BQ,115 Overview

16-VFQFN Exposed Pad contains it.Packaged in the way of Tape & Reel (TR).Open Drain, Push-Pull is the output configured for it.Its translator type is Voltage Level.Mounting this electronic component follows the Surface Mount method.In this electrical device, the Channel type is Bidirectional.There is -40°C~85°C TA operating temperature.The circuit's superior flexibility is achieved through the use of 1 circuits.Transmission lines are terminated using 16 terminations.Parts that are related to NVT2006 can be identified based on its base part number.There are 16 pins on this device.6 Bits are used in the design of this electronic part.Level translators is configured from 1V~3.6V for the VCCA supply rail.Level translators is configured from 1.8V~5.5V for the VCCB supply rail.Level translators is possible to ensure Auto-Direction Sensing when operating.TOTEM OUTPUT CHARACTERISTIC ALSO POSSIBLE are other characteristics of it.In order to operate normally, Vsup must remain above 1V.
