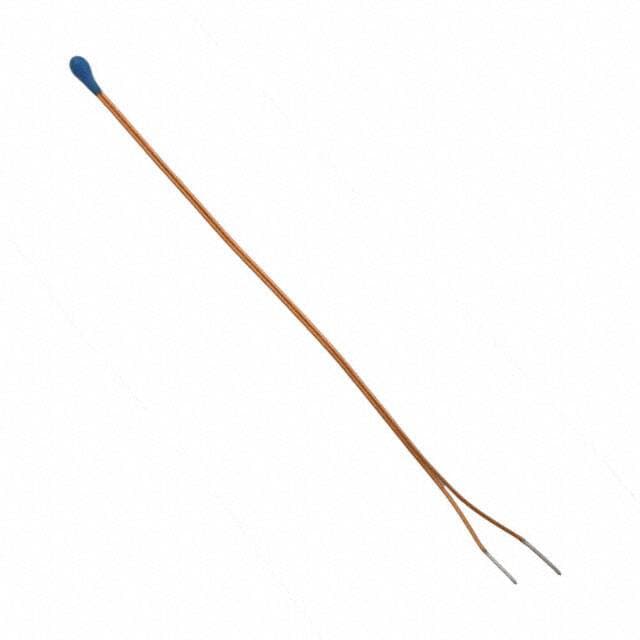

MURATA NXFT15XH103FA2B050

Manufacturer No:

NXFT15XH103FA2B050

Manufacturer:

MURATA

Package:

Bead

Description:

NXF Series NTC THERMISTOR Tolerance:1% 10k Free Hanging -40°C~125°C 3434K Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NXFT15XH103FA2B050 information

MURATA NXFT15XH103FA2B050 technical specifications, attributes, parameters and parts with similar specifications to MURATA NXFT15XH103FA2B050.

Type
Parameter

Mount
Free Hanging, Through Hole

Mounting Type
Free Hanging

Package / Case
Bead

Number of Pins
2

Operating Temperature
-40°C~125°C

Packaging
Bulk

Series
NXF

Tolerance
1%

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Wire

ECCN Code
EAR99

Resistance
10kOhm

HTS Code
8533.40.80.70

Power Rating
7.5mW

Max Power Dissipation
7.5mW

Depth
1.2mm

Resistor Type
NTC THERMISTOR

Current Rating
120μA

Rated Power Dissipation (P)
0.0075W

Lead Diameter
300 μm

Terminal Placement
RADIAL

Resistance Tolerance
±1%

Thermistor Application
TEMPERATURE COMPENSATION

Resistance in Ω @ 25°C
10k

B25/85
3434K

Thermal Sensitivity Index
3380 K

B25/50
3380K

B25/100
3455K

Length
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for MURATA NXFT15XH103FA2B050.

Datasheets:

murataelectronics-ntpaa5r1ld6a0-datasheets-0732.pdf

murataelectronics-nxft15xh103fa2b025-datasheets-5508.pdf

ReachStatement:

murata-gcm2165c1h271ga16j-reachstatement-6228.pdf

NXFT15XH103FA2B050 Overview

Typically, NTC thermistors are packaged in a Bulk package. In order to make things easier, it is included in the package Bead. A NTC thermistor must have a resistance tolerance of ±1% in order to operate. For reliable performance, NTC thermistors should be set to -40°C~125°C. Each of these NTC thermistors has a total of 2 terminations. In order for NTC thermistors to work properly, they must have their 2 pins connected. The thermistors set their maximum power to 100mW. It is possible to absorb 0.0075W power dissipation by the electronic component. It is possible for NTC thermistors to operate at a maximum power dissipation of 7.5mW. There is no danger of the fuse element deteriorating beyond a certain current limit for NTC thermistors.

NXFT15XH103FA2B050 Features

2 Pins
Package/Case: Bulk
NXF Series
Operating Temperature: -40°C~125°C
10kOhm Resistance
Rated Power Dissipation: 0.0075W
Mounting Type: Free Hanging
Current Rating of 120μA
1% Tolerance

NXFT15XH103FA2B050 Applications

There are a lot of Murata Electronics
NXFT15XH103FA2B050 NTC Thermistors applications.

Temperature detection of battery cells
Temperature compensation of display contrast
Temperature compensation of display backlighting (CCFL)
Personal Computer and Peripheral Device
Personal Computer and Peripheral Device
Liquid Crystal Display
Temperature measurement and compensation
LCD compensation
Battery packs
Mobile phones
