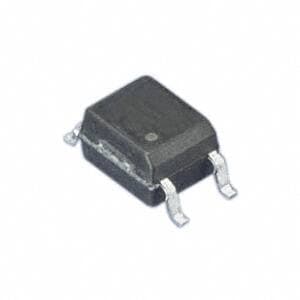

SHARP PC354NJ0000F

Manufacturer No:

PC354NJ0000F

Manufacturer:

SHARP

Package:

4-SMD, Gull Wing

Description:

OPTOISOLATOR 3.75KV TRANS 4-SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PC354NJ0000F information

SHARP PC354NJ0000F technical specifications, attributes, parameters and parts with similar specifications to SHARP PC354NJ0000F.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
4-SMD, Gull Wing

Number of Pins
4

Supplier Device Package
4-Mini-Flat

Current Transfer Ratio-Min
20% @ 1mA

Number of Elements
1

Operating Temperature
-30°C~100°C

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
100°C

Min Operating Temperature
-30°C

Max Power Dissipation
170mW

Voltage - Isolation
3750Vrms

Output Voltage
80V

Output Type
Transistor

Number of Channels
1

Number of Circuits
1

Power Dissipation
170mW

Voltage - Forward (Vf) (Typ)
1.2V

Input Type
AC, DC

Forward Current
1mA

Output Current per Channel
50mA

Rise Time
18μs

Forward Voltage
1.4V

Fall Time (Typ)
18 μs

Collector Emitter Voltage (VCEO)
80V

Max Collector Current
50mA

Rise / Fall Time (Typ)
4μs 3μs

Current - Output / Channel
50mA

Voltage - Output (Max)
80V

Max Input Current
50mA

Current - DC Forward (If) (Max)
50mA

Current Transfer Ratio (Max)
400% @ 1mA

Vce Saturation (Max)
200mV

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SHARP PC354NJ0000F.

Product Description:

The PC354NJ0000F is a surface-mount optoisolator transistor from SHARP/Socle Technology, designed for high-reliability applications. This 4-pin, 4-SMD, Gull Wing packaged device features a photovoltaic output and a collector-emitter saturation voltage of 200mV. With a maximum collector current of 50mA and a maximum input current of 50mA, it is suitable for a wide range of applications.

Features:

High Isolation Voltage: The device features a voltage isolation of 3750Vrms, ensuring safe operation in high-voltage applications.
High Current Transfer Ratio: The optoisolator has a maximum current transfer ratio of 400% at 1mA, making it suitable for applications requiring high current transfer.
Fast Rise and Fall Times: The device has a typical rise time of 18μs and a typical fall time of 18μs, allowing for fast switching and response times.
High Operating Temperature Range: The PC354NJ0000F operates within a temperature range of -30°C to 100°C, making it suitable for use in harsh environments.
Lead-Free and RoHS Compliant: The device is lead-free and RoHS compliant, ensuring environmental sustainability.

Applications:

Primary Applications:
Medical equipment
Industrial control systems
Automotive systems
Aerospace and defense systems
Secondary Applications:
Consumer electronics
Industrial automation
Building automation
Home appliances

Alternative Parts:

PC354NJ0001F
PC354NJ0002F
PC354NJ0003F

Embedded Modules:

Industrial control systems
Medical equipment
Automotive systems
Aerospace and defense systems

FAQs:

Q: What is the maximum collector current of the PC354NJ0000F? A: The maximum collector current is 50mA.

Q: What is the maximum input current of the PC354NJ0000F? A: The maximum input current is 50mA.

Q: What is the voltage isolation of the PC354NJ0000F? A: The voltage isolation is 3750Vrms.

Q: What is the typical rise time of the PC354NJ0000F? A: The typical rise time is 18μs.

Q: What is the typical fall time of the PC354NJ0000F? A: The typical fall time is 18μs.

Q: Is the PC354NJ0000F lead-free and RoHS compliant? A: Yes, the device is lead-free and RoHS compliant.

Q: What is the operating temperature range of the PC354NJ0000F? A: The operating temperature range is -30°C to 100°C.
