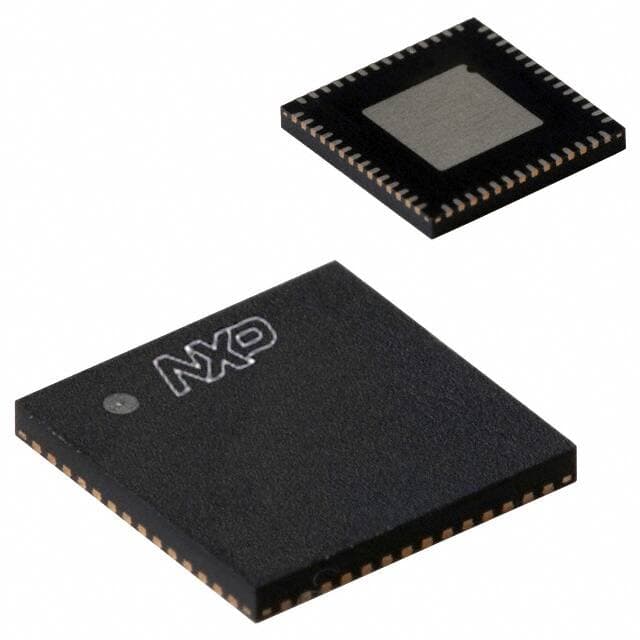

NXP PCA9698BS,118

Manufacturer No:

PCA9698BS,118

Manufacturer:

NXP

Package:

56-VFQFN Exposed Pad

Description:

56 Termination 0.5mm 2.5/5V I/O Expander PCA9698 3.3V 56-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCA9698BS,118 information

NXP PCA9698BS,118 technical specifications, attributes, parameters and parts with similar specifications to NXP PCA9698BS,118.

Type
Parameter

Factory Lead Time
7 Weeks

Mounting Type
Surface Mount

Package / Case
56-VFQFN Exposed Pad

Surface Mount
YES

Number of I/Os
40

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
56

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

HTS Code
8542.39.00.01

Voltage - Supply
2.3V~5.5V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
PCA9698

Pin Count
56

JESD-30 Code
S-PQCC-N56

Output Type
Open Drain

Power Supplies
2.5/5V

Interface
I2C

Number of Ports
2

Number of Bits
40

Clock Frequency
1MHz

Interrupt Output
Yes

Current - Output Source/Sink
10mA 25mA

Features
POR

Length
8mm

Height Seated (Max)
1mm

Width
8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP PCA9698BS,118.

Product Description:

The PCA9698BS,118 is a 40-bit, 2-port I/O expander from NXP USA Inc. designed for surface-mount applications. This I2C-based interface expander is suitable for a wide range of applications, including industrial control systems, medical devices, and automotive electronics.

Features:

Power-On Reset (POR): The device features a built-in power-on reset circuit that ensures the I/Os are in a known state during power-up.
High-Speed Operation: The PCA9698BS,118 operates at a clock frequency of 1MHz, making it suitable for high-speed applications.
High Current Output: The device can source/sink up to 25mA per output, making it suitable for driving LEDs, relays, and other high-current loads.
Interrupt Output: The device features an interrupt output that can be used to notify the microcontroller of changes in the I/O state.
Operating Temperature Range: The device operates over a wide temperature range of -40°C to 85°C, making it suitable for use in harsh environments.

Applications:

Primary Applications: Industrial control systems, medical devices, automotive electronics, and consumer electronics.
Secondary Applications: Aerospace, defense, and other high-reliability applications.

Alternative Parts:

PCA9698: The base part number for this device, which is similar but without the surface-mount packaging.
PCA9699: Another I/O expander from NXP with similar features but a different package and pinout.

Embedded Modules:

Microcontrollers: The PCA9698BS,118 is commonly used with microcontrollers such as the ARM Cortex-M series and the 8-bit AVR series.
System-on-Chip (SoC): The device is also used in SoCs such as the i.MX series from NXP.

FAQs:

Q: What is the operating temperature range of the PCA9698BS,118? A: The operating temperature range is -40°C to 85°C.

Q: What is the maximum clock frequency of the device? A: The maximum clock frequency is 1MHz.

Q: Can the device be used with a 3.3V supply voltage? A: Yes, the device can be used with a 3.3V supply voltage.

Q: What is the packaging type of the PCA9698BS,118? A: The packaging type is Tape & Reel (TR) with a 56-VFQFN Exposed Pad package.

Q: Is the device ROHS compliant? A: Yes, the device is ROHS3 compliant.

Q: What is the qualification status of the device? A: The qualification status is Not Qualified.

Note: The FAQs are based on the provided datasheet and may not cover all possible questions.
