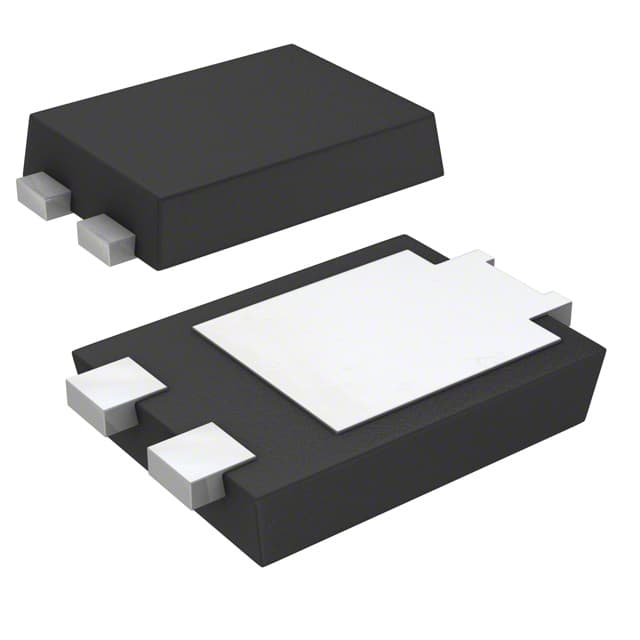

DIODES PDS760Q-13
DIODES PDS760Q-13

DIODES PDS760Q-13

Manufacturer No:

PDS760Q-13

Manufacturer:

DIODES

Package:

PowerDI? 5

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 620mV @ 7A -65°C~150°C 200?A @ 60V 3-Termination Tape & Reel (TR) PowerDI? 5 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDS760Q-13 information

DIODES PDS760Q-13 technical specifications, attributes, parameters and parts with similar specifications to DIODES PDS760Q-13.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • PowerDI? 5
  • Number of Pins
  • 5
  • Weight
  • 95.991485mg
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Automotive, AEC-Q101
  • Published
  • 2014
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • HIGH RELIABILITY, FREE WHEELING DIODE, LOW POWER LOSS, LOW LEAKAGE CURRENT
  • Terminal Position
  • DUAL
  • Terminal Form
  • FLAT
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 200?A @ 60V
  • Voltage - Forward (Vf) (Max) @ If
  • 620mV @ 7A
  • Case Connection
  • CATHODE
  • Forward Current
  • 7A
  • Operating Temperature - Junction
  • -65°C~150°C
  • Output Current-Max
  • 7A
  • Application
  • EFFICIENCY
  • Forward Voltage
  • 560mV
  • Max Reverse Voltage (DC)
  • 60V
  • Average Rectified Current
  • 7A
  • Number of Phases
  • 1
  • Peak Reverse Current
  • 20mA
  • Max Repetitive Reverse Voltage (Vrrm)
  • 60V
  • Peak Non-Repetitive Surge Current
  • 275A
  • Max Forward Surge Current (Ifsm)
  • 275A
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for DIODES PDS760Q-13.

Environmental Information:

PDS760Q-13 Overview


For this device, the average rectified current is 7A volts.In this case, forward current can reach 7A.7A represents the maximum output current.Based on the data chart, the peak reverse is 20mA.

PDS760Q-13 Features


an average rectified current of 7A volts
7A is the maximum value
the peak reverse is 20mA


PDS760Q-13 Applications


There are a lot of Diodes Incorporated
PDS760Q-13 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
