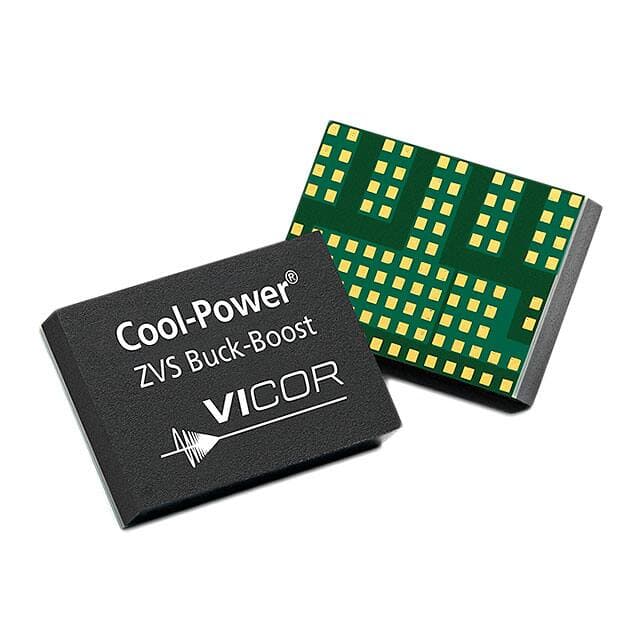

VICOR PI3741-00-LGIZ

Manufacturer No:

PI3741-00-LGIZ

Manufacturer:

VICOR

Package:

108-BLGA Module

Description:

108 Terminals 21V DC DC Voltage Regulator DC-DC REGULATED POWER SUPPLY MODULE 1 Outputs 1MHz Tray 6A 108-BLGA Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PI3741-00-LGIZ information

VICOR PI3741-00-LGIZ technical specifications, attributes, parameters and parts with similar specifications to VICOR PI3741-00-LGIZ.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
108-BLGA Module

Operating Temperature
-40°C~115°C TJ

Packaging
Tray

Feature
OCP, OTP, OVP, SCP, UVLO

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
108

ECCN Code
EAR99

Technology
HYBRID

Terminal Position
UNSPECIFIED

Terminal Form
BU

Peak Reflow Temperature (Cel)
245

Time@Peak Reflow Temperature-Max (s)
20

Function
Step-Up/Step-Down

Number of Outputs
1

Efficiency
97 %

Voltage - Input (Max)
60V

Output Voltage
24V

Output Type
Adjustable (Fixed)

Max Output Current
4.17A

Voltage - Output 1
36V

Input Voltage-Nom
48V

Trim/Adjustable Output
YES

Analog IC - Other Type
DC-DC REGULATED POWER SUPPLY MODULE

Output Configuration
Positive

Current - Output
6A

Voltage - Output (Min/Fixed)
21V 24V

Topology
Buck-Boost

Frequency - Switching
1MHz

Synchronous Rectifier
Yes

Height
2.54mm

Length
13.97mm

Width
9.906mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for VICOR PI3741-00-LGIZ.

PI3741-00-LGIZ Overview

This harley voltage regulator utilizes the Tray package for optimized performance. There are 108 terminations in this voltage regulator. The type of analog IC that this voltage regulator is equipped with is DC-DC REGULATED POWER SUPPLY MODULE. This harley voltage regulator is available in the 108-BLGA Module package for the purpose of space saving. DC DC switching regulator is configured with 1 outputs. This DC DC switching regulator generates Adjustable (Fixed) output on its output pins. This voltage regulator 12v fits the Surface Mount mounting. When operating, adjusting voltage regulator's operating temperature should be kept at -40°C~115°C TJ. The switching frequency of this DC-DC switching regulator reaches 1MHz. This voltage regulator is able to operate with the minimal input voltage of 21V. DC DC switching regulator's output voltage (Min/Fixed) amounts to 21V 24V. The output current of 6A makes dc to dc voltage regulator feature maximum design flexibility. Voltage regulator has an input voltage (Max) of 60V. The peak reflow temperature of this regulator amounts to 245 to be essentially indestructible. Voltage regulator is designed to provide a nominal input voltage of 48V to meet the operation requirements. The adjusting voltage regulator's output voltage is maintain at 24V. Voltage regulator's maximal output current reaches 4.17A A to meet the operation requirements.

PI3741-00-LGIZ Features

1 outputs
Peak reflow temperature (Cel) of 245

PI3741-00-LGIZ Applications

There are a lot of Vicor Corporation
PI3741-00-LGIZ Voltage Regulators applications.

CNC system
Servo drive system
Digital display device
Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
