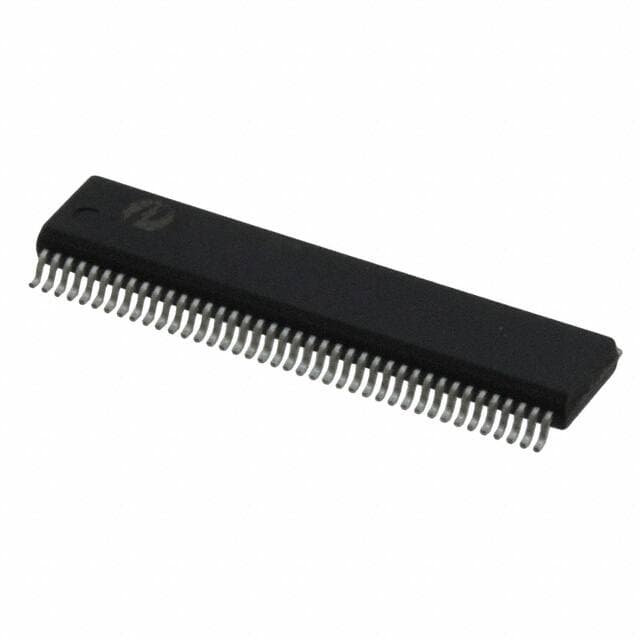

DIODES PI3C34X245BE

Manufacturer No:

PI3C34X245BE

Manufacturer:

DIODES

Package:

80-FSOP (0.154, 3.90mm Width)

Description:

80 Terminations 2.3V~3.6V 80 Pin 34X245 Signal switch 4 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PI3C34X245BE information

DIODES PI3C34X245BE technical specifications, attributes, parameters and parts with similar specifications to DIODES PI3C34X245BE.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
80-FSOP (0.154, 3.90mm Width)

Number of Pins
80

Operating Temperature
-40°C~85°C

Packaging
Tube

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
80

ECCN Code
EAR99

Type
Bus Switch

Resistance
8Ohm

Terminal Finish
Matte Tin (Sn)

Subcategory
Bus Driver/Transceivers

Technology
CMOS

Voltage - Supply
2.3V~3.6V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Base Part Number
34X245

Operating Supply Voltage
3.3V

Circuit
8 x 1:1

Supply Voltage-Max (Vsup)
3.63V

Supply Voltage-Min (Vsup)
2.97V

Number of Ports
2

Number of Bits
32

Propagation Delay
250 ps

Quiescent Current
2mA

Turn On Delay Time
9.8 ns

Family
CB3Q/3VH/3C/2B

Output Characteristics
3-STATE

Supply Type
Single

Output Polarity
TRUE

High Level Output Current
-120mA

Low Level Output Current
120mA

Voltage Supply Source
Single Supply

Independent Circuits
4

Length
20.5mm

Height Seated (Max)
2mm

Width
3.9mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for DIODES PI3C34X245BE.

PI3C34X245BE Overview

As a means of saving space, digital switch is provided in the 80-FSOP (0.154, 3.90mm Width).Tube represents its packaging.For mounting, digital switch ic uses the method Surface Mount.the multiplexers uses IC Bus Switch as the analog IC.A temperature of -40°C~85°C will not leave the turn signal swturn signal switchch susceptible to external influences.With a supply voltage of 2.3V~3.6V, designers have greater flexibility of digital controlled switch.Its basic configuration includes terminations in the 80 range.The base part number is 34X245, so you can find its logic switch related parts using that number.The multiplexer is supplied with 3.3V voltage.As a result, GULL WING represents the end of the conductors.This supply type employs Single.A total of 80 pins are configured on this board.The multiplexer ic is mounted in the direction of Surface Mount.The logic switch is a member of the CB3Q/3VH/3C/2B family.There are 32 bits in signal multiplexer.Keeping the minimum supply voltage (Vsup) at 2.97V prevents some unnecessary failures.Vsup (maximum supply voltage) should be kept as 3.63V to prevent unnecessary failures.Bus Driver/Transceivers is a category for the digital switch ics.It consumes 2mA current of multiplexer ic without external influences.If the supply voltage is 3.3V, reliable performance of the multiplexers can be achieved.The signal switching operates with a resistance of 2.With a resistance of 8Ohm, it operates.

PI3C34X245BE Features

Supplied in the 80-FSOP (0.154, 3.90mm Width) package
Adopting a supply type of Single
Operating with the supply voltage of 3.3V

PI3C34X245BE Applications

There are a lot of Diodes Incorporated
PI3C34X245BE Signal Switches / Multiplexers / Decoders applications.

Transmission from the computer system of a satellite
Time division multiplexing system
Frequency multiplexing system
A/D converters
D/A converters
Implementing boolean functions with multiple variables
Data collection system
Audio transmission
Video transmission
Image transmission
