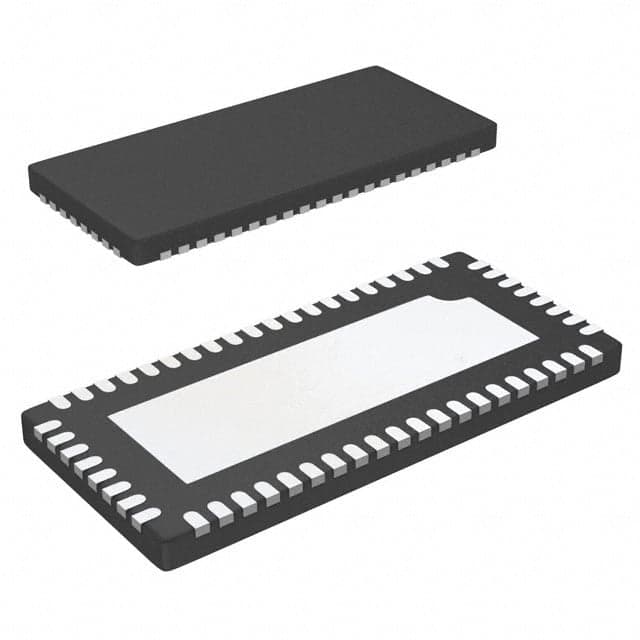

DIODES PI3LVD512ZFEX
DIODES PI3LVD512ZFEX

DIODES PI3LVD512ZFEX

Manufacturer No:

PI3LVD512ZFEX

Manufacturer:

DIODES

Package:

56-WFQFN Exposed Pad

Description:

56 Terminations 3V~3.6V 56 Pin Signal switch 1 Functions

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PI3LVD512ZFEX information

DIODES PI3LVD512ZFEX technical specifications, attributes, parameters and parts with similar specifications to DIODES PI3LVD512ZFEX.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 56-WFQFN Exposed Pad
  • Surface Mount
  • YES
  • Number of Pins
  • 56
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2010
  • JESD-609 Code
  • e3
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 56
  • ECCN Code
  • EAR99
  • Type
  • Multiplexer/Demultiplexer
  • Terminal Finish
  • Matte Tin (Sn)
  • Voltage - Supply
  • 3V~3.6V
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Qualification Status
  • Not Qualified
  • Supply Voltage-Max (Vsup)
  • 3.63V
  • Supply Voltage-Min (Vsup)
  • 2.97V
  • Number of Channels
  • 5
  • On-State Resistance (Max)
  • 3.5Ohm
  • Off-state Isolation-Nom
  • 41 dB
  • Voltage Supply Source
  • Single Supply
  • On-state Resistance Match-Nom
  • 0.9Ohm
  • Independent Circuits
  • 1
  • Switch-off Time-Max
  • 9ns
  • Height Seated (Max)
  • 0.8mm
  • Width
  • 5mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for DIODES PI3LVD512ZFEX.

Datasheets:

PI3LVD512ZFEX Overview


For the purpose of saving board space, digital switch is included in the 56-WFQFN Exposed Pad.In this case, it is packaged as Tape & Reel (TR).Surface Mount is the mounting method digital switch ic uses.In the multiplexers, the analog IC is indicated by Multiplexer/Demultiplexer.As long as the operating temperature is -40°C~85°C, turn signal switch will not be influenced by external factors.When digital controlled switch operates at 3V~3.6V, designers have superior flexibility.Among its basic configurations are 56 terminations.In multiplexer's system, 3.3V is the voltage supplied.As a result, conductors end at NO LEAD.The board has 56 pins configured.Keeping Vsup at 2.97V will prevent some unwanted failures.To avoid unnecessary failures, the maximum supply voltage (Vsup) should be kept at 3.63V.This turn signal switch's circuit uses 5 transmission channels.

PI3LVD512ZFEX Features


Supplied in the 56-WFQFN Exposed Pad package


PI3LVD512ZFEX Applications


There are a lot of Diodes Incorporated
PI3LVD512ZFEX Signal Switches / Multiplexers / Decoders applications.


  • Computer memory
  • Transmission from the computer system of a satellite
  • Time division multiplexing system
  • Frequency multiplexing system
  • A/D converters
  • D/A converters
  • Implementing boolean functions with multiple variables
  • Data collection system
  • Audio transmission
  • Video transmission
