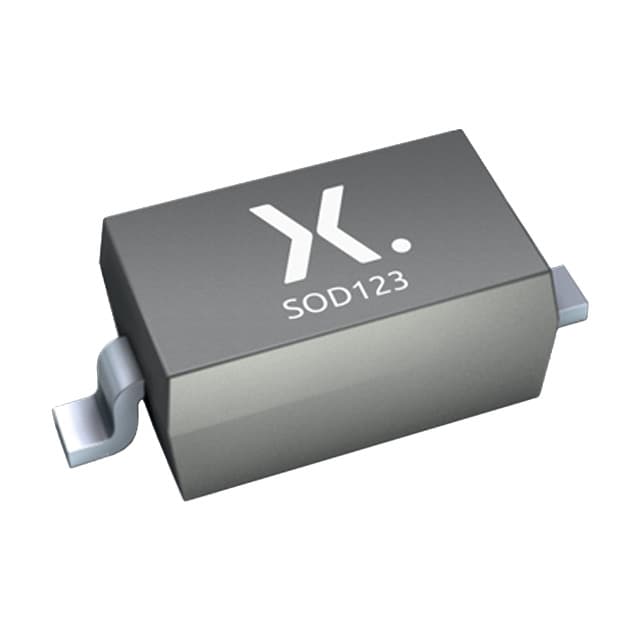

NEXPERIA PMEG2005EGWX

Manufacturer No:

PMEG2005EGWX

Manufacturer:

NEXPERIA

Package:

SOD-123

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 390mV @ 500mA 150°C Max 200μA @ 20V 2-Termination Tape & Reel (TR) SOD-123 Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PMEG2005EGWX information

NEXPERIA PMEG2005EGWX technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA PMEG2005EGWX.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Surface Mount

Package / Case
SOD-123

Surface Mount
YES

Diode Element Material
SILICON

Number of Elements
1

Operating Temperature (Max.)
150°C

Power Dissipation (Max)
0.4W

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q101

Published
2016

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Terminal Position
DUAL

Terminal Form
GULL WING

Reference Standard
AEC-Q101; IEC-60134

JESD-30 Code
R-PDSO-G2

Configuration
SINGLE

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Current - Reverse Leakage @ Vr
200μA @ 20V

Voltage - Forward (Vf) (Max) @ If
390mV @ 500mA

Forward Current
500mA

Output Current-Max
0.5A

Voltage - DC Reverse (Vr) (Max)
20V

Rep Pk Reverse Voltage-Max
20V

Capacitance @ Vr, F
66pF @ 1V 1MHz

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NEXPERIA PMEG2005EGWX.

Datasheets:

nexperiausainc-pmeg2005egwj-datasheets-1099.pdf

RohsStatement:

nexperia-pesd3v3c1bsfyl-rohsstatement-2649.pdf

PMEG2005EGWX Overview

A forward current of 500mA is allowed.In terms of output current, the maximum value is 0.5A.

PMEG2005EGWX Features

0.5A is the maximum value

PMEG2005EGWX Applications

There are a lot of Nexperia USA Inc.
PMEG2005EGWX applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
