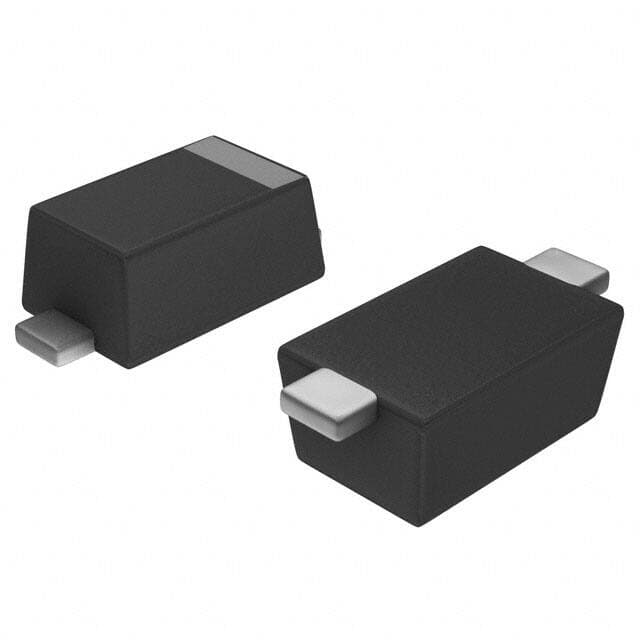

NEXPERIA PMEG40T20ERX
NEXPERIA PMEG40T20ERX

NEXPERIA PMEG40T20ERX

Manufacturer No:

PMEG40T20ERX

Manufacturer:

NEXPERIA

Package:

SOD-123W

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 450mV @ 2A 175°C Max 22?A @ 40V 2-Termination Tape & Reel (TR) SOD-123W Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PMEG40T20ERX information

NEXPERIA PMEG40T20ERX technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA PMEG40T20ERX.

  • Type
  • Parameter
  • Factory Lead Time
  • 4 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SOD-123W
  • Surface Mount
  • YES
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Automotive, AEC-Q101
  • Published
  • 2017
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Additional Feature
  • FREE WHEELING DIODE, LOW LEAKAGE CURRENT
  • Terminal Position
  • DUAL
  • Terminal Form
  • FLAT
  • Pin Count
  • 2
  • Reference Standard
  • AEC-Q101; IEC-60134
  • JESD-30 Code
  • R-PDSO-F2
  • Operating Temperature (Max)
  • 175°C
  • Number of Elements
  • 1
  • Configuration
  • SINGLE
  • Power Dissipation-Max
  • 0.68W
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 22?A @ 40V
  • Forward Current
  • 2A
  • Operating Temperature - Junction
  • 175°C Max
  • Output Current-Max
  • 2A
  • Application
  • EFFICIENCY
  • Voltage - DC Reverse (Vr) (Max)
  • 40V
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 11.5ns
  • Rep Pk Reverse Voltage-Max
  • 40V
  • Capacitance @ Vr, F
  • 350pF @ 1V 1MHz
  • Reverse Current-Max
  • 22?A
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NEXPERIA PMEG40T20ERX.

Datasheets:

RohsStatement:

PMEG40T20ERX Overview


Phase diode rectifier is permissible for forward current to reach 2A.As soon as the reverse current maximum has been reached, 22?A is reached.Using the output current as an example, 2A is the maximum value.

PMEG40T20ERX Features


A maximum reverse current of 22?A
2A is the maximum value


PMEG40T20ERX Applications


There are a lot of Nexperia USA Inc.
PMEG40T20ERX applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
