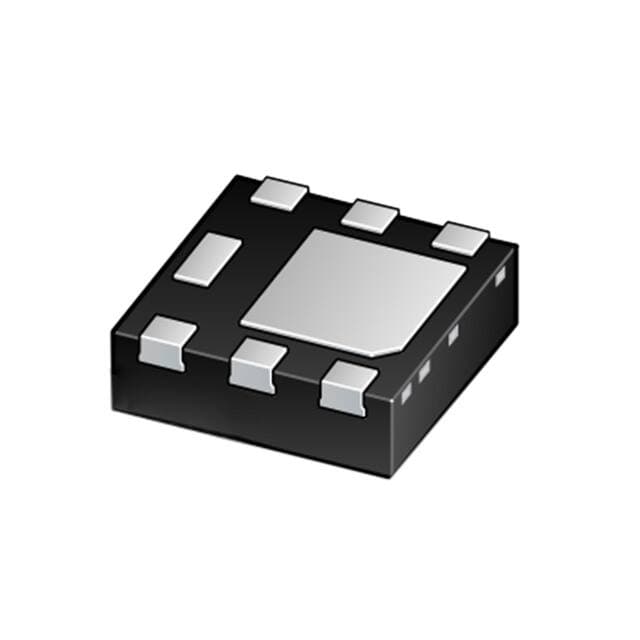

NEXPERIA PMPB55ENEAX
NEXPERIA PMPB55ENEAX

NEXPERIA PMPB55ENEAX

Manufacturer No:

PMPB55ENEAX

Manufacturer:

NEXPERIA

Package:

6-UDFN Exposed Pad

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 56m ? @ 10A, 10V ±20V 435pF @ 30V 12nC @ 10V 60V 6-UDFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PMPB55ENEAX information

NEXPERIA PMPB55ENEAX technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA PMPB55ENEAX.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 6-UDFN Exposed Pad
  • Surface Mount
  • YES
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2016
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 6
  • Technology
  • MOSFET (Metal Oxide)
  • Terminal Position
  • DUAL
  • Terminal Form
  • NO LEAD
  • Pin Count
  • 6
  • Reference Standard
  • AEC-Q101; IEC-60134
  • JESD-30 Code
  • S-PDSO-N6
  • Number of Elements
  • 1
  • Configuration
  • SINGLE WITH BUILT-IN DIODE
  • Power Dissipation-Max
  • 1.65W Ta
  • Operating Mode
  • ENHANCEMENT MODE
  • Case Connection
  • DRAIN
  • FET Type
  • N-Channel
  • Transistor Application
  • SWITCHING
  • Vgs(th) (Max) @ Id
  • 2.7V @ 250?A
  • Input Capacitance (Ciss) (Max) @ Vds
  • 435pF @ 30V
  • Current - Continuous Drain (Id) @ 25°C
  • 4A Ta
  • Gate Charge (Qg) (Max) @ Vgs
  • 12nC @ 10V
  • Drain to Source Voltage (Vdss)
  • 60V
  • Drive Voltage (Max Rds On,Min Rds On)
  • 4.5V 10V
  • Vgs (Max)
  • ±20V
  • Drain Current-Max (Abs) (ID)
  • 4A
  • Drain-source On Resistance-Max
  • 0.056Ohm
  • Pulsed Drain Current-Max (IDM)
  • 16A
  • DS Breakdown Voltage-Min
  • 60V
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NEXPERIA PMPB55ENEAX.

Datasheets:

PCN Packaging:

RohsStatement:

PMPB55ENEAX Overview


An op amp's input capacitance is defined as the capacitance between both of its input terminals with either input grounded, and 435pF @ 30V is its maximum input capacitance.Drain current refers to the maximum continuous current a device can conduct, and it is 4A.Peak drain current is 16A, which is the maximum pulsed drain current.Normal operation requires that the DS breakdown voltage remain above 60V.For this transistor to work, a voltage 60V is required between drain and source (Vdss).Using drive voltage (4.5V 10V), this device contributes to a reduction in overall power consumption.

PMPB55ENEAX Features


based on its rated peak drain current 16A.
a 60V drain to source voltage (Vdss)


PMPB55ENEAX Applications


There are a lot of Nexperia USA Inc.
PMPB55ENEAX applications of single MOSFETs transistors.


  • AC-DC Power Supply
  • Synchronous Rectification for ATX 1 Server I Telecom PSU
  • Motor drives and Uninterruptible Power Supplies
  • Micro Solar Inverter
  • DC/DC converters
  • Power Tools
  • Motor Drives and Uninterruptible Power Supples
  • Synchronous Rectification
  • Battery Protection Circuit
  • Telecom 1 Sever Power Supplies
