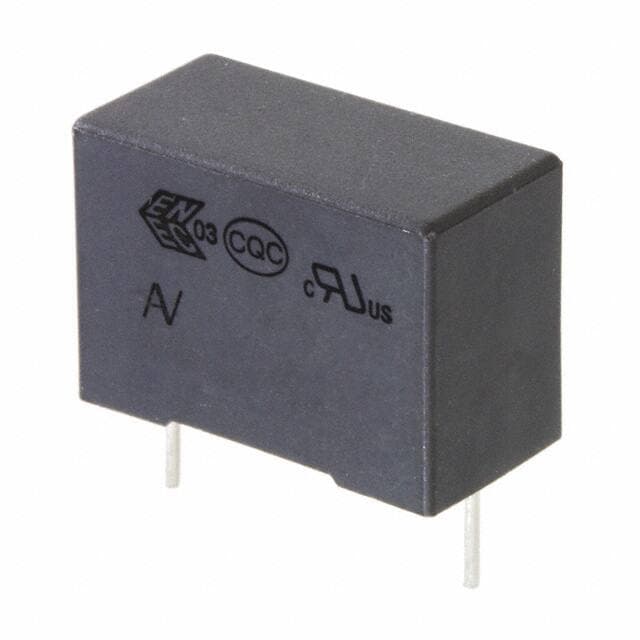

KEMET R46KW510050M1K

Manufacturer No:

R46KW510050M1K

Manufacturer:

KEMET

Package:

Radial

Description:

R46 10μF Film Capacitor ±10% Radial PC Pins 560V-DC 275V-AC Polypropylene (PP), Metallized Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R46KW510050M1K information

KEMET R46KW510050M1K technical specifications, attributes, parameters and parts with similar specifications to KEMET R46KW510050M1K.

Type
Parameter

Factory Lead Time
30 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Polypropylene (PP), Metallized

Operating Temperature
-40°C~110°C

Packaging
Bulk

Series
R46

Published
2007

Size / Dimension
1.634Lx1.181W 41.50mmx30.00mm

Tolerance
±10%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
2

Termination
PC Pins

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Applications
EMI, RFI Suppression

Capacitance
10μF

Voltage - Rated DC
560V

Reference Standard
IEC60384-14

Voltage - Rated AC
275V

Lead Pitch
37.5mm

Capacitor Type
FILM CAPACITOR

Lead Length
25mm

Dielectric
PP

Lead Spacing
1.476 37.50mm

Lead Diameter
1 mm

Lead/Base Style
Straight

Height
45mm

Height Seated (Max)
1.776 45.10mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Ratings
X2

Download datasheets and manufacturer documentation for KEMET R46KW510050M1K.

Datasheets:

kemet-r46kw510050m1k-datasheets-7857.pdf

R46KW510050M1K Overview

Electrical devices have 1.476 37.50mm lead spacing.Temperatures of -40°C~110°C are suitable for operating the device.

R46KW510050M1K Features

R46KW510050M1K Applications

There are a lot of KEMET
R46KW510050M1K applications of film capacitors.

RF Modules
Mobile communications
Satellite TV
Global positioning systems
Filters
VCO's
Matching networks
Snubbering
Filtering
IGBT
