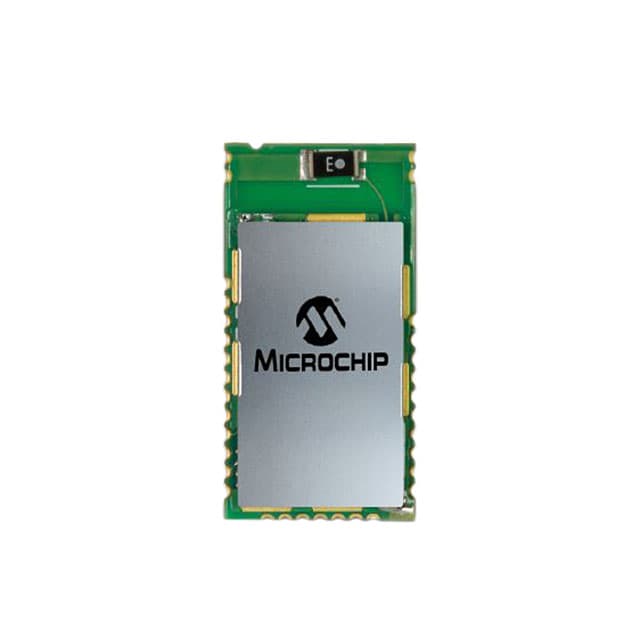

Microchip RN4678-V/RM100
Microchip RN4678-V/RM100

Microchip RN4678-V/RM100

Manufacturer No:

RN4678-V/RM100

Manufacturer:

Microchip

Package:

Module

Description:

Bluetooth Dual Mode Module with ASCII style Interface

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RN4678-V/RM100 information

Microchip RN4678-V/RM100 technical specifications, attributes, parameters and parts with similar specifications to Microchip RN4678-V/RM100.

  • Type
  • Parameter
  • Bluetooth Spec
  • 5.0 + Classic
  • GPIO
  • 8
  • TX Output Power (dBm)
  • 1.5
  • Operating Temp (°C) Min
  • -20
  • Operating Temp (°C) Max
  • 70
  • Deep Sleep Current (μA)
  • 130
  • Operating Voltage (V) Min
  • 3.3
  • Operating Voltage (V) Max
  • 4.2
  • Antenna Type
  • Chip
  • Regulatory
  • FCC, CE, ISED, SRRC, MIC, NC, KC, WPC

Download datasheets and manufacturer documentation for Microchip RN4678-V/RM100.

Data Sheets:

Brochures:

User Guide:

Supporting Collateral:

Application Notes:

The RN4678 is a fully certified Bluetooth Dual Mode (BR/EDR/LE) module, which enables the designer to easily add classic Bluetooth and Bluetooth Smart capability to their products. Delivering local connectivity for the Internet of Things (IoT), the RN4678 bridges the product to Smart Phones and Tablets for convenient data transfer, control and access to cloud applications.


This Bluetooth SIG certified module provides a complete wireless solution with Bluetooth stack on-board, integrated antenna, and worldwide radio certifications in a compact surface mount package, 22 x 12 x 2.4 mm. It supports GAP, SDP, SPP, and GATT profiles. Data is transferred over the Bluetooth link by sending/receiving data via transparent UART mode, making it easy to integrate with any processor or microcontroller with a UART interface. Configuration is made easy through ASCII commands via UART.


The Microchip Bluetooth Data (MBD) mobile app is available to speed up development for both Android and iOS.

Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in*.

*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Firmware Release Summary, see Software Release Notes for details:

RN4678-V/RM123 - ANSSI fix (Web release only)

RN4678-V/RM122 - Sweyntooth & BIAS fixes, SPP version 1.2, connection bug fixes.

RN4678-V/RM113 - Added support for 1Mbps baud rate, added command to supporess "Rebooting" and "Trying" status messages. Fixed bonding issue with Paired Device List, and other minor bug fixes.

RN4678-V/RM111 - Bluetooth name restored to default on factory reset. Other minor bug fixes.

RN4678-V/RM100 - Initial Release.



  • Bluetooth 5 Certified
  • Bluetooth Classic and Bluetooth Low-Energy Support
  • Easy to use ASCII command interface for communication with the host microcontroller
  • Module certified for use in USA, Canada, Europe, Japan, Korea, Taiwan, India and China
  • Mobile App support in Microchip Bluetooth Data (MBD) for iOS and Android
  • Additional part numbers available for Apple MFi accessories
  • On-board embedded Bluetooth Stack (GAP, SDP, SPP, GATT)
  • Easy to use transparent mode for data transfer via UART
  • Multiple I/O pins for control and status
  • Secure AES128 encryption and LE Secure Connections
  • +2 dBm Transmit Power
  • Receiver Sensitivity -90 dBm (Classic); -92 dBm (LE)
  • Firmware can be field upgradable via UART
  • Compact surface mount module: 22 x 12 x 2.4 mm
