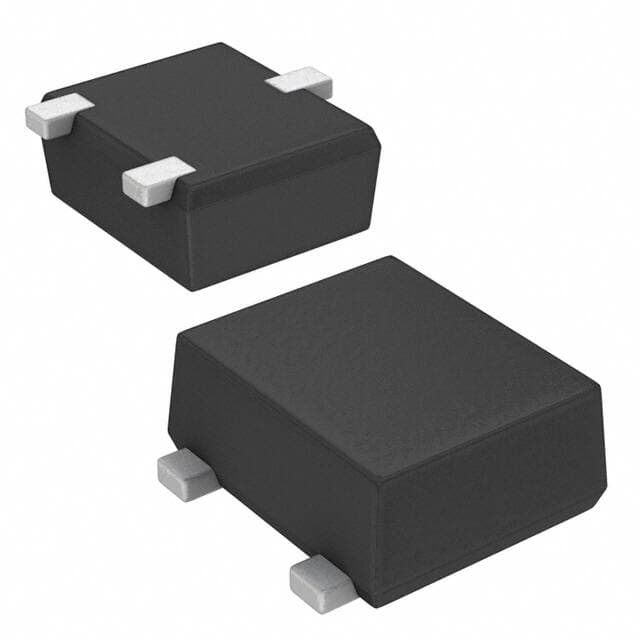

ROHM RUF015N02TL
ROHM RUF015N02TL

ROHM RUF015N02TL

Manufacturer No:

RUF015N02TL

Manufacturer:

ROHM

Package:

3-SMD, Flat Lead

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 180m ? @ 1.5A, 4.5V ±10V 110pF @ 10V 2.5nC @ 4.5V 3-SMD, Flat Lead

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RUF015N02TL information

ROHM RUF015N02TL technical specifications, attributes, parameters and parts with similar specifications to ROHM RUF015N02TL.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 3-SMD, Flat Lead
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2007
  • JESD-609 Code
  • e2
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Resistance
  • 180MOhm
  • Terminal Finish
  • TIN COPPER
  • Subcategory
  • FET General Purpose Power
  • Technology
  • MOSFET (Metal Oxide)
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • 260
  • Time@Peak Reflow Temperature-Max (s)
  • 10
  • Pin Count
  • 3
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Operating Mode
  • ENHANCEMENT MODE
  • Power Dissipation
  • 800mW
  • Turn On Delay Time
  • 5 ns
  • FET Type
  • N-Channel
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 180m ? @ 1.5A, 4.5V
  • Vgs(th) (Max) @ Id
  • 1V @ 1mA
  • Input Capacitance (Ciss) (Max) @ Vds
  • 110pF @ 10V
  • Current - Continuous Drain (Id) @ 25°C
  • 1.5A Ta
  • Gate Charge (Qg) (Max) @ Vgs
  • 2.5nC @ 4.5V
  • Rise Time
  • 5ns
  • Drive Voltage (Max Rds On,Min Rds On)
  • 1.8V 4.5V
  • Vgs (Max)
  • ±10V
  • Fall Time (Typ)
  • 3 ns
  • Turn-Off Delay Time
  • 20 ns
  • Continuous Drain Current (ID)
  • 1.5A
  • Gate to Source Voltage (Vgs)
  • 10V
  • Drain to Source Breakdown Voltage
  • 20V
  • Height
  • 770?m
  • Length
  • 2mm
  • Width
  • 1.7mm
  • REACH SVHC
  • No SVHC

Download datasheets and manufacturer documentation for ROHM RUF015N02TL.

RUF015N02TL Overview


The maximum input capacitance of this device is 110pF @ 10V, because the input capacitance of an op amp is defined as the difference between the input terminals with one input grounded.Continuous drain current (ID) is the maximum continuous current (ID) the device can conduct, and it is 1.5A.When VGS=20V, and ID flows to VDS at 20VVDS, the drain-source breakdown voltage is 20V in this device.Before drain current conduction can begin, the device's turn-off delay time must be charged up to full capacitance. This value is 20 ns.During device turn-on, the input capacitance must be charged for a period of time before drain current conduction can begin, so its delay time is 5 ns seconds.Single MOSFETs transistor is the voltage across the gate-source terminal of a transistor that determines the gate-source voltage, VGS.Using drive voltage (1.8V 4.5V), this device helps reduce its power consumption.

RUF015N02TL Features


a continuous drain current (ID) of 1.5A
a drain-to-source breakdown voltage of 20V voltage
the turn-off delay time is 20 ns


RUF015N02TL Applications


There are a lot of ROHM Semiconductor
RUF015N02TL applications of single MOSFETs transistors.


  • Micro Solar Inverter
  • DC/DC converters
  • Power Tools
  • Motor Drives and Uninterruptible Power Supples
  • Synchronous Rectification
  • Battery Protection Circuit
  • Telecom 1 Sever Power Supplies
  • Industrial Power Supplies
  • PFC stages, hard switching PWM stages and resonant switching
  • PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
