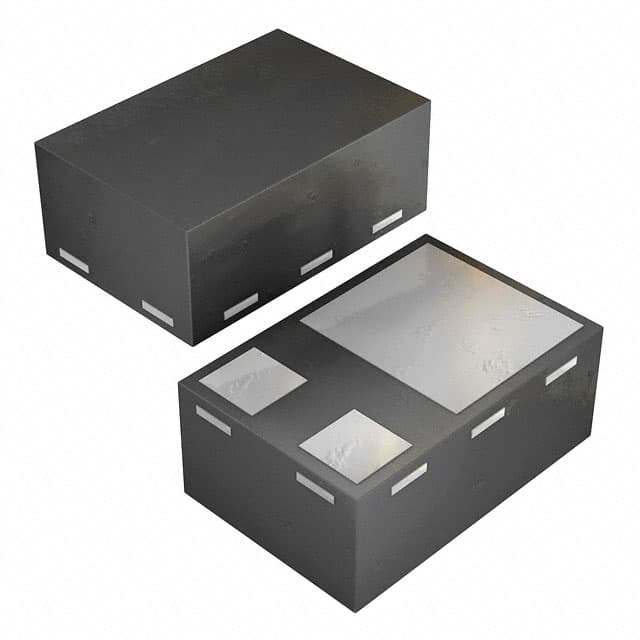

ROHM RV1C001ZPT2L
Manufacturer No:
RV1C001ZPT2L
Manufacturer:
Package:
ULTRA SMALL, VML0806, 3 PIN
Description:
Description: Small Signal Field-Effect Transistor, 0.1A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, ULTRA SMALL, VML0806, 3 PIN
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
RV1C001ZPT2L information
ROHM RV1C001ZPT2L technical specifications, attributes, parameters and parts with similar specifications to ROHM RV1C001ZPT2L.
- Type
- Parameter
- RoHS Status
- RoHS Compliant
- Part Life Cycle Code
- Not Recommended
- Ihs Manufacturer
- ROHM CO LTD
- Package Description
- ULTRA SMALL, VML0806, 3 PIN
- Reach Compliance Code
- compliant
- ECCN Code
- EAR99
- Factory Lead Time
- 21 Weeks
- Samacsys Manufacturer
- ROHM Semiconductor
- Case Connection
- DRAIN
- Configuration
- SINGLE WITH BUILT-IN DIODE AND RESISTOR
- DS Breakdown Voltage-Min
- 20 V
- Drain Current-Max (ID)
- 0.1 A
- Drain-source On Resistance-Max
- 3.8 Ω
- FET Technology
- METAL-OXIDE SEMICONDUCTOR
- JESD-30 Code
- R-XBCC-N3
- JESD-609 Code
- e3
- Moisture Sensitivity Level
- 1
- Number of Elements
- 1
- Number of Terminals
- 3
- Operating Mode
- ENHANCEMENT MODE
- Operating Temperature-Max
- 150 °C
- Package Body Material
- UNSPECIFIED
- Package Shape
- RECTANGULAR
- Package Style
- CHIP CARRIER
- Polarity/Channel Type
- P-CHANNEL
- Power Dissipation-Max (Abs)
- 0.1 W
- Surface Mount
- YES
- Terminal Finish
- Tin (Sn)
- Terminal Form
- NO LEAD
- Terminal Position
- BOTTOM
- Time@Peak Reflow Temperature-Max (s)
- 10
- Transistor Application
- SWITCHING
- Transistor Element Material
- SILICON
Download datasheets and manufacturer documentation for ROHM RV1C001ZPT2L.
RV1C001ZPT2L Overview
Op amps with either input grounded have a fixed input capacitance parameter, CI, and this device has a 15pF @ 10V maximal input capacitance.Devices can conduct a maximum continuous current of 3 amps in the drain area, so the continuous drain current (ID) for this device is 100mA amps.In this device, the drain-source breakdown voltage is -20V and VGS=-20V, so the drain-source breakdown voltage is -20V in this case.A device can conduct a maximum continuous current of [0.1A] according to its drain current.It is [325 ns] because it takes time to charge the input capacitance of the device before drain current conduction can begin.To operate this transistor, you will need a 20V drain to source voltage (Vdss).A device like this reduces its overall power consumption when it uses drive voltage (1.2V 4.5V).
RV1C001ZPT2L Features
a continuous drain current (ID) of 100mA
a drain-to-source breakdown voltage of -20V voltage
the turn-off delay time is 325 ns
a 20V drain to source voltage (Vdss)
RV1C001ZPT2L Applications
There are a lot of ROHM Semiconductor
RV1C001ZPT2L applications of single MOSFETs transistors.
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
