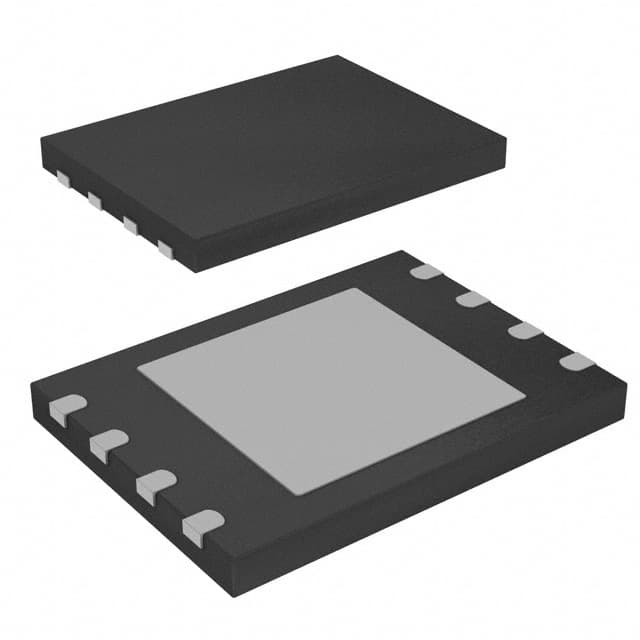

INFINEON S25FL256SAGNFI003

Manufacturer No:

S25FL256SAGNFI003

Manufacturer:

INFINEON

Package:

8-WDFN Exposed Pad

Description:

3/3.3V V Surface Mount FL-S Memory IC FL-S Series 256 Mb kb 90mA mA 1b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S25FL256SAGNFI003 information

INFINEON S25FL256SAGNFI003 technical specifications, attributes, parameters and parts with similar specifications to INFINEON S25FL256SAGNFI003.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-WDFN Exposed Pad

Number of Pins
8

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
FL-S

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

Additional Feature
IT ALSO CONFIGURED AS 256M X 1

Technology
FLASH - NOR

Voltage - Supply
2.7V~3.6V

Terminal Position
DUAL

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
1.27mm

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3/3.3V

Supply Voltage-Min (Vsup)
2.7V

Interface
SPI

Memory Size
256Mb 32M x 8

Memory Type
Non-Volatile

Clock Frequency
133MHz

Access Time
8 ns

Memory Format
FLASH

Memory Interface
SPI - Quad I/O

Data Bus Width
8b

Organization
64MX4

Memory Width
4

Address Bus Width
1b

Density
256 Mb

Standby Current-Max
0.0001A

Parallel/Serial
SERIAL

Sync/Async
Synchronous

Word Size
1b

Programming Voltage
3V

Serial Bus Type
SPI

Endurance
100000 Write/Erase Cycles

Write Cycle Time-Max (tWC)
500ms

Data Retention Time-Min
20

Write Protection
HARDWARE/SOFTWARE

Alternate Memory Width
2

Ambient Temperature Range High
85°C

Height
800μm

Download datasheets and manufacturer documentation for INFINEON S25FL256SAGNFI003.

Environmental Information:

cypresssemiconductorcorp-cy467269103pod-environmentalinformation-2998.pdf

PCN Packaging:

cypresssemiconductorcorp-cy467269103pod-pcnpackaging-3001.pdf

cypresssemiconductorcorp-cy467269103-pcnpackaging-5650.pdf

S25FL256SAGNFI003 Overview

Non-Volatile is the type of memory it has. There is a Tape & Reel (TR) case available. The 8-WDFN Exposed Pad case contains it. The chip has an 256Mb 32M x 8 memory. This device uses a FLASH-format memory, which is of mainstream design. A wide operating temperature range makes this device ideal for a variety of demanding applications. A voltage of 2.7V~3.6V can be supplied to memory ics. Its recommended mounting type is Surface Mount. The chip has 8 terminations. For a comprehensive working procedure, this part supports as many as 1 functions. In order to operate this memory device, it must be supplied with 3V of power. It is important to note that the memory has a clock frequency rotation within the range of 133MHz. The memory device is enclosed in a package with an 8-pin connector. In this chip, Surface Mount mounting is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component is rated at 90mA. Despite all its merits, this chip also features IT ALSO CONFIGURED AS 256M X 1 to boost system performance. When it comes to power supplies, this memory chip only requires 3/3.3V . In its target applications, this memory ics plays an important role as a member of the FL-S series of memory devices. Data is carried and transferred to the CPU by the SPI-type serial bus this memory integrates with. Nonvolatile memory arrays require 3V programming voltage to change their state.

S25FL256SAGNFI003 Features

Package / Case: 8-WDFN Exposed Pad
8 Pins
Additional Feature:IT ALSO CONFIGURED AS 256M X 1

S25FL256SAGNFI003 Applications

There are a lot of Cypress Semiconductor Corp
S25FL256SAGNFI003 Memory applications.

cell phones
eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
