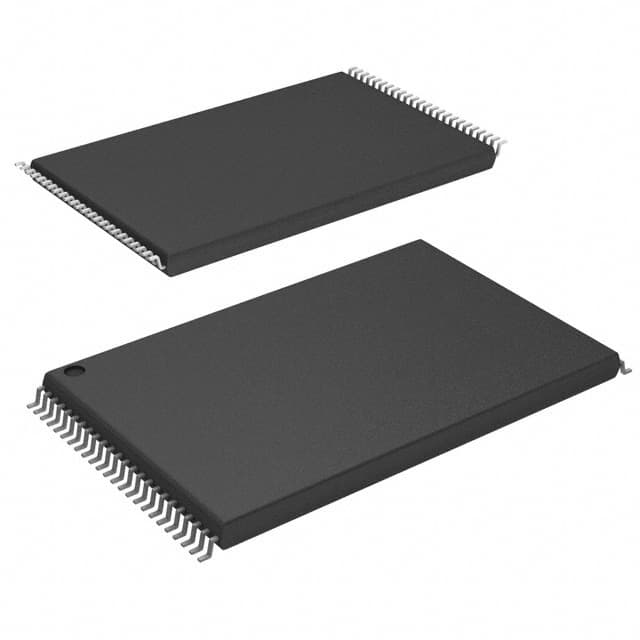

INFINEON S29AL008J70TFI010

Manufacturer No:

S29AL008J70TFI010

Manufacturer:

INFINEON

Package:

48-TFSOP (0.724, 18.40mm Width)

Description:

3.3V V Surface Mount AL-J Memory IC AL-J Series 8 Mb kb 18.5mm mm 12mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S29AL008J70TFI010 information

INFINEON S29AL008J70TFI010 technical specifications, attributes, parameters and parts with similar specifications to INFINEON S29AL008J70TFI010.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
48-TFSOP (0.724, 18.40mm Width)

Number of Pins
48

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
AL-J

Published
2010

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Additional Feature
TOP BOOT BLOCK

HTS Code
8542.32.00.51

Technology
FLASH - NOR

Voltage - Supply
2.7V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.5mm

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3.3V

Supply Voltage-Min (Vsup)
2.7V

Memory Size
8Mb 1M x 8 512K x 16

Nominal Supply Current
12mA

Memory Type
Non-Volatile

Memory Format
FLASH

Memory Interface
Parallel

Data Bus Width
8b

Organization
512KX16

Write Cycle Time - Word, Page
70ns

Density
8 Mb

Standby Current-Max
0.000005A

Access Time (Max)
70 ns

Sync/Async
Asynchronous

Programming Voltage
3V

Data Polling
YES

Toggle Bit
YES

Command User Interface
YES

Number of Sectors/Size
12115

Sector Size
16K8K32K64K

Ready/Busy
YES

Boot Block
TOP

Download datasheets and manufacturer documentation for INFINEON S29AL008J70TFI010.

Environmental Information:

cypresssemiconductorcorp-cy467269103pod-environmentalinformation-2998.pdf

PCN Packaging:

cypresssemiconductorcorp-cy467269103pod-pcnpackaging-3001.pdf

cypresssemiconductorcorp-cy467269103pod-pcnpackaging-3002.pdf

S29AL008J70TFI010 Overview

As far as memory types are concerned, Non-Volatile is considered to be its memory type. In addition, memory ics is available in a Tray case as well. In the case of 48-TFSOP (0.724, 18.40mm Width), it is embedded within the case. A memory chip with a capacity of 8Mb 1M x 8 512K x 16 is used on this device. There is a mainstream memory format used by this device, which is called FLASH-format memory. This device has an extended operating temperature range of -40°C~85°C TA, so it's perfect for a wide range of demanding applications. It is capable of handling a voltage supply of 2.7V~3.6V. As far as the mounting type is concerned, Surface Mount is recommended. On the chip, there are 48 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 3V. The memory device has an 48-pin package, which encloses it in a small package. In this chip, the Surface Mount mounting method is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component has a rating of 12mA. The memory chip also offers TOP BOOT BLOCK to level up system performance despite its merits. There is only a single power supply required for this memory chip. This part plays an important role in applications that target the AL-J series of memory devices. There is a need for a programming voltage of 3V in order to modify the state of some nonvolatile memory arrays. As a total, this ic memory chip is divided into 12115 parts that are specifically sized.

S29AL008J70TFI010 Features

Package / Case: 48-TFSOP (0.724, 18.40mm Width)
48 Pins
Additional Feature:TOP BOOT BLOCK

S29AL008J70TFI010 Applications

There are a lot of Cypress Semiconductor Corp
S29AL008J70TFI010 Memory applications.

servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
