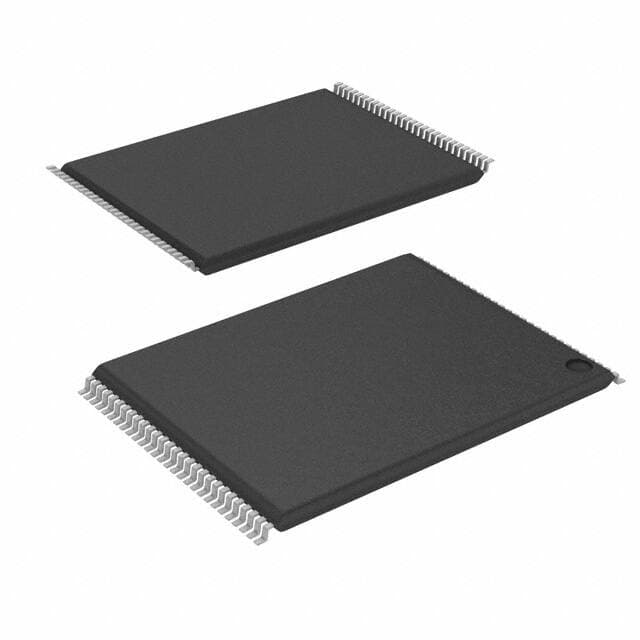

INFINEON S29GL01GP11TFIR20

Manufacturer No:

S29GL01GP11TFIR20

Manufacturer:

INFINEON

Package:

56-TFSOP (0.724, 18.40mm Width)

Description:

3.3V V Surface Mount GL-P Memory IC GL-P Series 1 Gb kb 18.4mm mm 110mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S29GL01GP11TFIR20 information

INFINEON S29GL01GP11TFIR20 technical specifications, attributes, parameters and parts with similar specifications to INFINEON S29GL01GP11TFIR20.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
56-TFSOP (0.724, 18.40mm Width)

Number of Pins
56

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
GL-P

Published
2007

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
56

ECCN Code
3A991.B.1.A

HTS Code
8542.32.00.51

Technology
FLASH - NOR

Voltage - Supply
3V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
3V

Memory Size
1Gb 128M x 8

Nominal Supply Current
110mA

Memory Type
Non-Volatile

Memory Format
FLASH

Memory Interface
Parallel

Data Bus Width
8b

Organization
1GX1

Memory Width
1

Write Cycle Time - Word, Page
110ns

Density
1 Gb

Standby Current-Max
0.000005A

Access Time (Max)
110 ns

Sync/Async
Asynchronous

Programming Voltage
3V

Alternate Memory Width
8

Data Polling
YES

Toggle Bit
YES

Command User Interface
YES

Number of Sectors/Size
1K

Sector Size
128K

Page Size
8/16words

Ready/Busy
YES

Download datasheets and manufacturer documentation for INFINEON S29GL01GP11TFIR20.

PCN Packaging:

cypresssemiconductorcorp-cy467269103-pcnpackaging-5650.pdf

cypresssemiconductorcorp-cy467269103pod-pcnpackaging-3002.pdf

S29GL01GP11TFIR20 Overview

In this case, the memory type of the device can be classified as Non-Volatile. Case Tray is available. An embedded 56-TFSOP (0.724, 18.40mm Width) case surrounds memory ics. It is estimated that the memory size on the chip is 1Gb 128M x 8. As with most mainstream devices, this one uses FLASH-format memory. Due to its wide temperature range of -40°C~85°C TA, this device is well suited to a wide range of applications that require high performance. With 3V~3.6V as the supply voltage, it is capable of handling memory ics. It is recommended to mount it in the Surface Mount mounting type. It is planted on the chip with 56 terminations. It supports up to 1 functions for comprehensive operation. There is a requirement for 3.3V to be supplied to this ic memory chip in order to operate. The ic memory chip comes in a package with 56 pins that allows it to be connected to a computer. This chip uses Surface Mount mounting, a straightforward, high-efficiency method of mounting. It is rated 110mA for its nominal supply current when it comes to the memory component. In terms of power requirements, this memory chip uses only 3.3V . This part, which belongs to the GL-P series of memory devices, plays an important role in its target applications. Nonvolatile memory arrays require 3V programming voltages to change their states. Total, there are 1K specifically sized divisions within this memory.

S29GL01GP11TFIR20 Features

Package / Case: 56-TFSOP (0.724, 18.40mm Width)
56 Pins

S29GL01GP11TFIR20 Applications

There are a lot of Cypress Semiconductor Corp
S29GL01GP11TFIR20 Memory applications.

networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
