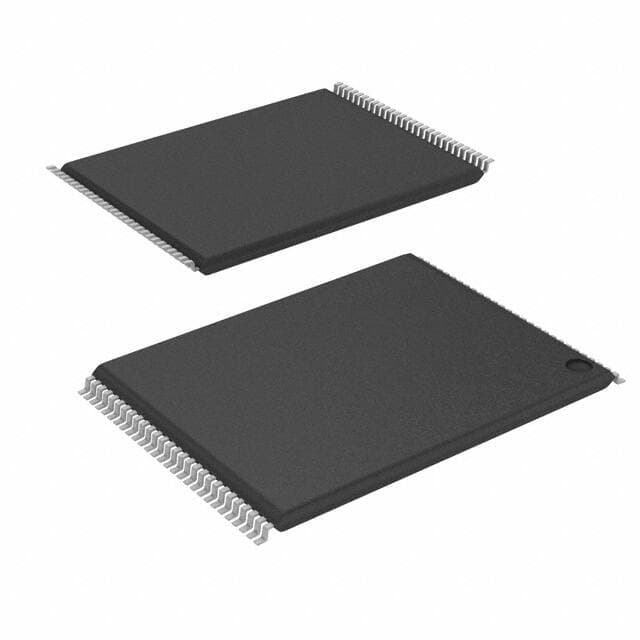

INFINEON S29GL032N11TFIV10

Manufacturer No:

S29GL032N11TFIV10

Manufacturer:

INFINEON

Package:

56-TFSOP (0.724, 18.40mm Width)

Description:

1.8/3.33/3.3V V Surface Mount GL-N Memory IC GL-N Series 32 Mb kb 18.4mm mm 50mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S29GL032N11TFIV10 information

INFINEON S29GL032N11TFIV10 technical specifications, attributes, parameters and parts with similar specifications to INFINEON S29GL032N11TFIV10.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
56-TFSOP (0.724, 18.40mm Width)

Number of Pins
56

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
GL-N

Published
2003

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
56

ECCN Code
3A991.B.1.A

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.32.00.51

Technology
FLASH - NOR

Voltage - Supply
1.65V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Power Supplies
1.8/3.33/3.3V

Supply Voltage-Min (Vsup)
2.7V

Memory Size
32Mb 4M x 8 2M x 16

Nominal Supply Current
50mA

Memory Type
Non-Volatile

Memory Format
FLASH

Memory Interface
Parallel

Data Bus Width
16b

Organization
2MX16

Memory Width
16

Write Cycle Time - Word, Page
110ns

Density
32 Mb

Standby Current-Max
0.000005A

Access Time (Max)
110 ns

Sync/Async
Asynchronous

Programming Voltage
3V

Alternate Memory Width
8

Data Polling
YES

Toggle Bit
YES

Command User Interface
YES

Number of Sectors/Size
64

Sector Size
64K

Page Size
8/16words

Download datasheets and manufacturer documentation for INFINEON S29GL032N11TFIV10.

S29GL032N11TFIV10 Overview

In terms of its memory type, it can be classified as Non-Volatile. The case comes in Tray size. The case is embedded in 56-TFSOP (0.724, 18.40mm Width). Memory size on the chip is 32Mb 4M x 8 2M x 16. This device uses takes advantage of the FLASH format. The device's extended operating temperature range of -40°C~85°C TA makes it ideal for many demanding applications. The device is capable of handling a supply voltage of 1.65V~3.6V. The recommended mounting type for this device is Surface Mount. On the chip, there are 56 terminations. The comprehensive working procedure is supported by 1 functions in this part. A voltage of 3V is required for the operation of this memory device. An 56-pin package is used to package this memory device. It uses Surface Mount mounting, which is an efficient, straightforward mounting method. As far as its nominal supply current is concerned, this memory component carries a rating of 50mA. This memory chip requires only 1.8/3.33/3.3V of power. GL-N series memory devices play an important role in the applications they target. A programming voltage of 3V is required to alter the state of certain nonvolatile memory arrays. A total of 64 specific sizes of divisions are present in this memory.

S29GL032N11TFIV10 Features

Package / Case: 56-TFSOP (0.724, 18.40mm Width)
56 Pins

S29GL032N11TFIV10 Applications

There are a lot of Cypress Semiconductor Corp
S29GL032N11TFIV10 Memory applications.

eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
