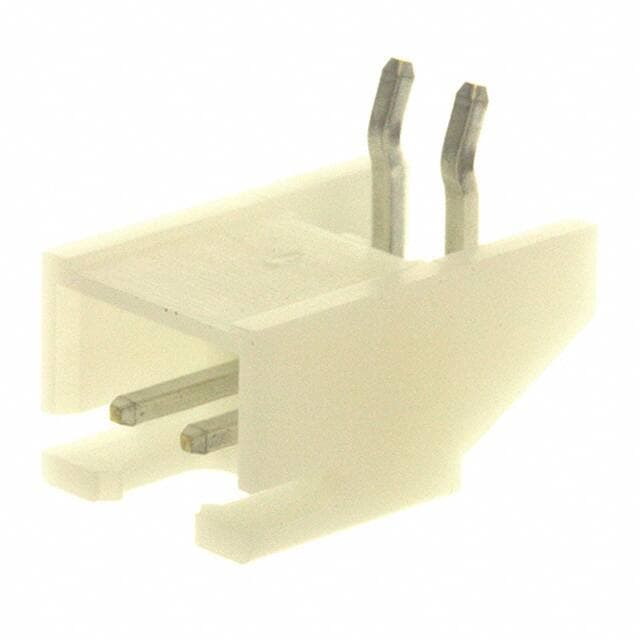

JST S2B-XH-A(LF)(SN)

Manufacturer No:

S2B-XH-A(LF)(SN)

Manufacturer:

JST

Package:

Radial

Description:

XH Series 1-Row Header Press-Fit, Solder Bulk Through Hole, Right Angle 2-Position Board to Cable/Wire 0.240 6.10mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S2B-XH-A(LF)(SN) information

JST S2B-XH-A(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST S2B-XH-A(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Package / Case
Radial

Contact Shape
Square

Housing Material
Polyamide

Weight
28.349523g

Contact Finish Mating
Tin

Contact Materials
Brass

Insulation Materials
Polyamide (PA66), Nylon 6/6

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
XH

Published
2010

Tolerance
10%

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Press-Fit, Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
2

Number of Rows
1

Additional Feature
SHROUDED, SIDE ENTRY

HTS Code
8536.69.40.40

Capacitance
1nF

Fastening Type
Detent Lock

Voltage - Rated DC
100V

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Orientation
Right Angle

Depth
11.5mm

Insulation Height
0.240 6.10mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.098 2.50mm

Insulation Color
Natural

Voltage - Rated AC
250V

Contact Length - Post
0.134 3.40mm

Shrouding
Shrouded - 4 Wall

Download datasheets and manufacturer documentation for JST S2B-XH-A(LF)(SN).

Datasheets:

jstsalesamericainc-sxh001tp06n-datasheets-2394.pdf

S2B-XH-A(LF)(SN) Description

The outstanding dependability and adaptability of our NH series connectors served as the foundation for the development of the XH connector. The connector is quite tiny, with a 9.8 mm mounting height.

S2B-XH-A(LF)(SN) Features

first-order folded beam contact
Shrouded header in the form of a box
Header featuring a boss
Ability to swap out
Compliant with the HA terminal

S2B-XH-A(LF)(SN) Applications

Switching applications
