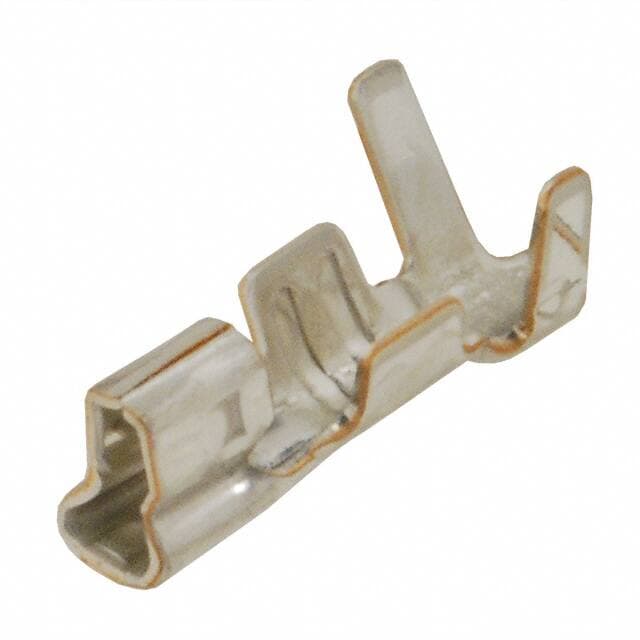

JST SEH-001T-P0.6

Manufacturer No:

SEH-001T-P0.6

Manufacturer:

JST

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SEH-001T-P0.6 information

JST SEH-001T-P0.6 technical specifications, attributes, parameters and parts with similar specifications to JST SEH-001T-P0.6.

Type
Parameter

Factory Lead Time
12 Weeks

Contact Material
Bronze

Mounting Style
STRAIGHT

Packaging
Cut Tape (CT)

Series
EH

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Resistance
10mOhm

Number of Positions
1

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Gender
Female

HTS Code
8536.90.40.00

Voltage - Rated DC
250V

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Current Rating
3A

Contact Finish
Tin

Approval Agency
CSA; TUV; UL

Working Voltage
250V

Contact Style
SQ PIN-SKT

Contact Resistance
10mOhm

Insulation Resistance
1GOhm

Connector Support Type
CONNECTOR ACCESSORY

Wire Gauge (Max)
30 AWG

Wire Gauge (Min)
22 AWG

Wire/Cable Gauge
22 AWG

Contact Termination
Crimp

Wire/Cable Diameter
1.9 mm

Pin or Socket
Socket

Assembly Item Name
CONTACT

Cable Entry-Max
0.075 inch

Cable Entry-Min
0.039 inch

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST SEH-001T-P0.6.

Datasheets:

jstsalesamericainc-seh001tp06-datasheets-3021.pdf

The JST SEH-001T-P0.6 Rectangular Connectors - Contacts are designed for reliable and secure electrical connections. These terminal sockets are part of the EH Series and feature a 2.5mm pitch. They are suitable for use with 22-30 AWG wire and feature a crimp connection with tin plating for superior corrosion resistance. The SEH-001T-P0.6 connectors are ideal for a variety of applications, including automotive, industrial, and consumer electronics. They are designed for easy installation and provide a reliable connection for a wide range of applications.
