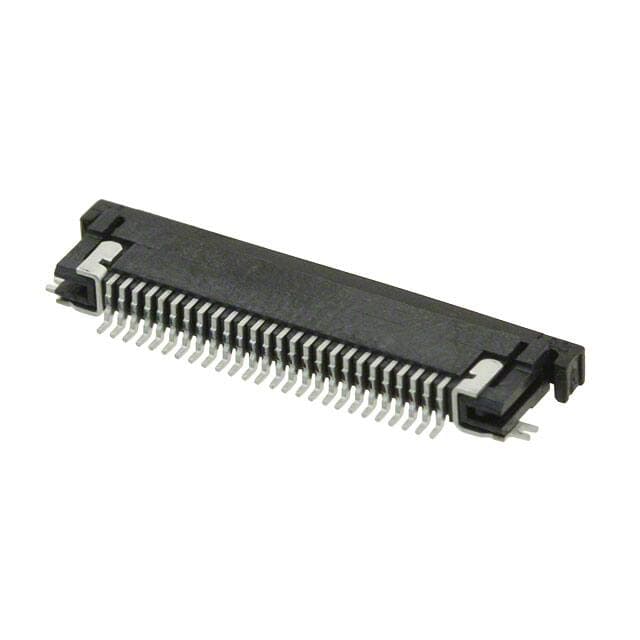

Amphenol SFV26R-1STE1HLF

Manufacturer No:

SFV26R-1STE1HLF

Manufacturer:

Package:

Description:

SFV-R Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 26 Positions Surface Mount, Right Angle Tin -55°C~105°C 0.5A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SFV26R-1STE1HLF information

Amphenol SFV26R-1STE1HLF technical specifications, attributes, parameters and parts with similar specifications to Amphenol SFV26R-1STE1HLF.

Type
Parameter

Factory Lead Time
14 Weeks

Contact Material
Phosphor Bronze

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Housing Material
Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Actuator Material
Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free

Operating Temperature
-55°C~105°C

Packaging
Tape & Reel (TR)

Series
SFV-R

Feature
Solder Retention, Zero Insertion Force (ZIF)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Number of Positions
26

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Number of Rows
1

Gender
Receptacle

Voltage - Rated
50V

Current Rating (Amps)
0.5A

Pitch
0.020 0.50mm

Orientation
Right Angle

Depth
4.9mm

Contact Finish
Tin

Number of Contacts
26

Housing Color
Black

Contact Resistance
30mOhm

Insulation Resistance
100MOhm

Max Voltage Rating (AC)
50V

Wire/Cable Type
Straight

Max Voltage Rating (DC)
50V

Mating Cycles
20

Flat Flex Type
FFC, FPC

Connector/Contact Type
Contacts, Bottom

Cable End Type
Straight, Tapered

Locking Feature
Slide Lock

Actuator Color
Black

Contact Location
Bottom

Length
18.5mm

Height Above Board
0.071 1.80mm

FFC, FCB Thickness
0.30mm 0.33mm

Material Flammability Rating
UL94 V-0

Radiation Hardening
No

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Amphenol SFV26R-1STE1HLF.

SFV26R-1STE1HLF Overview

Surface Mount, Right Angle is the mounting type of the device.We pack the product in a Tape & Reel (TR) case.This is from the SFV-R Series.The ideal temperature for using it is below 105°C.There must be a minimum temperature of -55°C.A number of advantages can be derived from its Solder Retention, Zero Insertion Force (ZIF) feature.This part is mounted by Surface Mount. -55°C~105°C Operating Temperature is the default.
