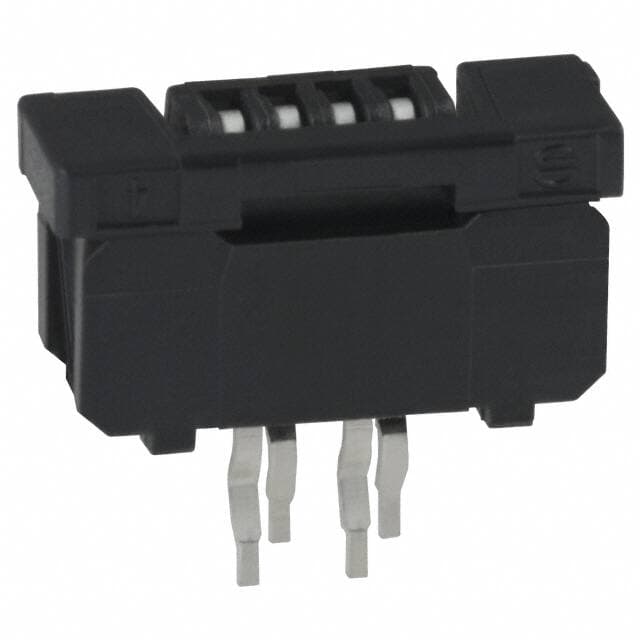

Amphenol SLW4S-1C7LF

Manufacturer No:

SLW4S-1C7LF

Manufacturer:

Package:

Description:

SLW-S Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.039 1.00mm Kinked Pin 4 Positions Through Hole Tin -55°C~85°C 1A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SLW4S-1C7LF information

Amphenol SLW4S-1C7LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol SLW4S-1C7LF.

Type
Parameter

Factory Lead Time
11 Weeks

Contact Material
Phosphor Bronze

Contact Plating
Tin

Mount
Through Hole

Mounting Type
Through Hole

Housing Material
Polyamide (PA), Nylon, Glass Filled

Actuator Material
Polyamide (PA), Nylon, Glass Filled

Operating Temperature
-55°C~85°C

Packaging
Tray

Series
SLW-S

Feature
Zero Insertion Force (ZIF)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Kinked Pin

Number of Positions
4

Max Operating Temperature
85°C

Min Operating Temperature
-55°C

Number of Rows
1

Gender
Receptacle

Voltage - Rated
100V

Current Rating (Amps)
1A

Pitch
0.039 1.00mm

Orientation
Straight

Depth
4mm

Contact Finish
Tin

Voltage - Rated AC
100V

Number of Contacts
4

Housing Color
Black

Contact Resistance
30mOhm

Insulation Resistance
500MOhm

Max Voltage Rating (AC)
100V

Wire/Cable Type
Straight

Max Voltage Rating (DC)
100V

Mating Cycles
20

Flat Flex Type
FFC, FPC

Connector/Contact Type
Contacts, Vertical - 1 Sided

Cable End Type
Straight, Tapered

Locking Feature
Slide Lock

Actuator Color
Black

Contact Location
Bottom

Length
10.2mm

Width
4mm

Height Above Board
0.217 5.50mm

FFC, FCB Thickness
0.30mm 0.33mm

Material Flammability Rating
UL94 V-0

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Amphenol SLW4S-1C7LF.

SLW4S-1C7LF Overview

Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the SLW-S Series.Use it when the temperature is below 85°C.Temperatures below -55°C are required for this device to operate.It is more powerful in many ways due to its Zero Insertion Force (ZIF) feature.It is mounted by Through Hole.It operates at an operating temperature of -55°C~85°C.

SLW4S-1C7LF Features

SLW-S series

SLW4S-1C7LF Applications

There are a lot of Amphenol ICC (FCI)
SLW4S-1C7LF FFC, FPC (Flat Flexible) Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
