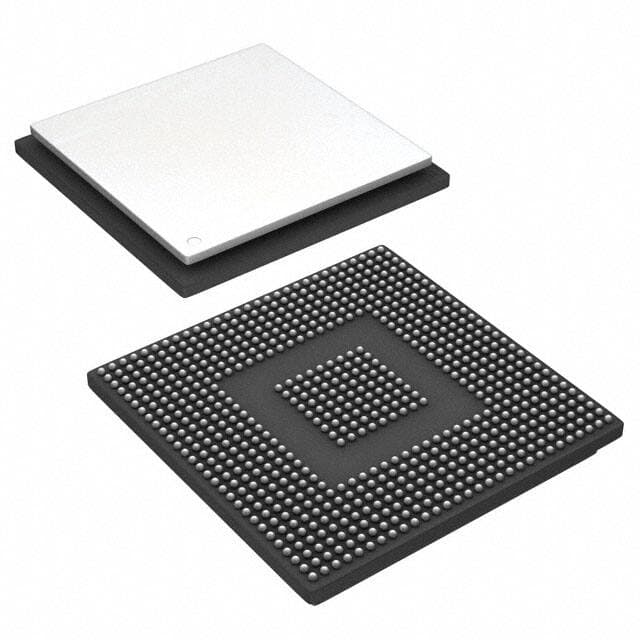

TI SM320C6455BGTZEP

Manufacturer No:

SM320C6455BGTZEP

Manufacturer:

Package:

697-BFBGA, FCBGA

Description:

0.8mm CPLD TMS320C645x Series 320C6455 697 Pin 1GHz 1.25V 697-BFBGA, FCBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM320C6455BGTZEP information

TI SM320C6455BGTZEP technical specifications, attributes, parameters and parts with similar specifications to TI SM320C6455BGTZEP.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
697-BFBGA, FCBGA

Number of Pins
697

Weight
4.340114g

Operating Temperature
0°C~90°C TC

Packaging
Tray

Series
TMS320C645x

JESD-609 Code
e0

Part Status
Active

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
697

Type
Fixed Point

Terminal Finish
Tin/Lead (Sn/Pb)

Additional Feature
IT ALSO REQUIRES 3.3V I/O SUPPLY

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
220

Supply Voltage
1.25V

Terminal Pitch
0.8mm

Base Part Number
320C6455

Pin Count
697

Operating Supply Voltage
1.25V

Interface
Host Interface, I2C, McBSP, PCI, UTOPIA

Max Supply Voltage
3.46V

Min Supply Voltage
1.1875V

Number of I/O
16

Bit Size
32

Data Bus Width
32b

Number of Timers/Counters
2

Boundary Scan
YES

Low Power Mode
YES

Integrated Cache
YES

Voltage - I/O
1.2V1.25V1.5V1.8V3.3V

ROM Programmability
MROM

Barrel Shifter
NO

Internal Bus Architecture
MULTIPLE

Non-Volatile Memory
ROM (32kB)

Voltage - Core
1.20V

On Chip Data RAM
2.1MB

Number of DMA Channels
64

Height
3.5mm

Length
24mm

Download datasheets and manufacturer documentation for TI SM320C6455BGTZEP.

SM320C6455BGTZEP Overview

It is a kind of electronic component that comes in a package of 697-BFBGA, FCBGA.Packaging is provided in the form of Tray.In addition to meeting a wide range of requirements, it is a member of Fixed Point.The machine is mounted in the way of Surface Mount in order to facilitate its operation.By operating the device at the temperature of 0°C~90°C TC, a normal operation is ensured.It refers to the analog voltage range of 1.2V1.25V1.5V1.8V3.3V that may be input or output.Digital signal processors such as this one are included in the TMS320C645x series.In order to use it, it has 697 terminations.Using 1.25V as the supply voltage, it operates.697 components have pins.The configuration of this board includes 697 pins.The base part number 320C6455 allows identification of a wide range of related parts.Specifically, the device is designed to operate at a frequency of 1GHz.Surface Mount is the method of mounting it.The characteristics of this device allow it to be placed in the subcategory of Digital Signal Processors.Devices like this can be powered with as little as 1.1875V volts.It is capable of receiving a maximum voltage of 3.46V.1.25V is the supply voltage for this device.It is also possible to add additional features to IT ALSO REQUIRES 3.3V I/O SUPPLY with the help of this electronic component.To measure time and count events externally, 2 timers/counters are used.A 16 I/O interface is present on the device.To prevent CPU overload, 64 DMA channels are used to transfer data.

SM320C6455BGTZEP Features

Supplied in the 697-BFBGA, FCBGA package
Operating supply voltage of 1.25V
2 timers/counters
16 I/Os

SM320C6455BGTZEP Applications

There are a lot of Texas Instruments
SM320C6455BGTZEP DSP applications.

Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
Signal processing for telecommunications
