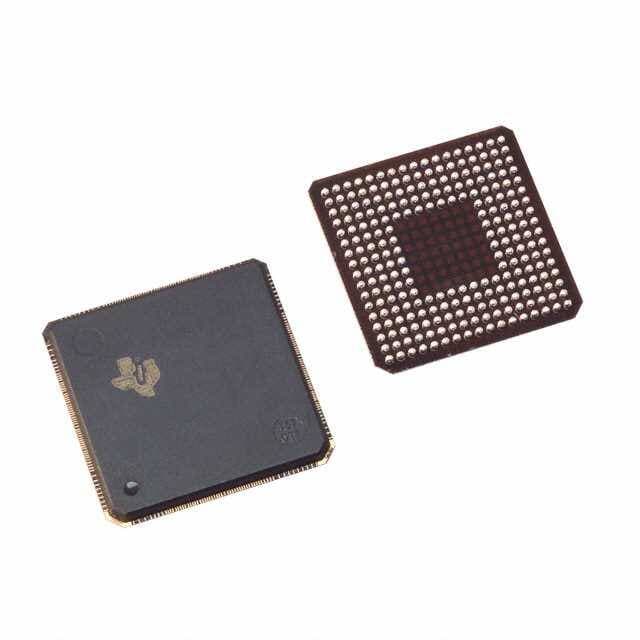

TI SM32VC5510AGGWA2EP

Manufacturer No:

SM32VC5510AGGWA2EP

Manufacturer:

Package:

240-LFBGA

Description:

0.8mm 32kB CPLD TMS320C55x Series 32VC5510 240 Pin 200MHz 1.6V 240-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM32VC5510AGGWA2EP information

TI SM32VC5510AGGWA2EP technical specifications, attributes, parameters and parts with similar specifications to TI SM32VC5510AGGWA2EP.

Type
Parameter

Lifecycle Status
NRND (Last Updated: 2 days ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
240-LFBGA

Number of Pins
240

Weight
529.08715mg

Operating Temperature
-40°C~85°C TC

Packaging
Tray

Series
TMS320C55x

JESD-609 Code
e0

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
240

ECCN Code
3A991.A.2

Type
Fixed Point

Terminal Finish
Tin/Lead (Sn/Pb)

Additional Feature
ALSO REQUIRES 3.3V SUPPLY

HTS Code
8542.31.00.01

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
220

Supply Voltage
1.6V

Frequency
200MHz

Base Part Number
32VC5510

Pin Count
240

Operating Supply Voltage
3.3V

Interface
Host Interface, McBSP

Max Supply Voltage
3.6V

Min Supply Voltage
1.55V

Memory Size
32kB

RAM Size
320kB

Number of Bits
16

Bit Size
16

Data Bus Width
16b

Boundary Scan
YES

Low Power Mode
YES

Integrated Cache
YES

Voltage - I/O
3.30V

Number of Timers
2

ROM Programmability
MROM

Number of External Interrupts
7

Barrel Shifter
NO

Internal Bus Architecture
MULTIPLE

Non-Volatile Memory
ROM (32kB)

Voltage - Core
1.60V

Download datasheets and manufacturer documentation for TI SM32VC5510AGGWA2EP.

SM32VC5510AGGWA2EP Overview

It is a kind of electronic component that comes in a package of 240-LFBGA.Packaging is provided in the form of Tray.In addition to meeting a wide range of requirements, it is a member of Fixed Point.The machine is mounted in the way of Surface Mount in order to facilitate its operation.By operating the device at the temperature of -40°C~85°C TC, a normal operation is ensured.It refers to the analog voltage range of 3.30V that may be input or output.Digital signal processors such as this one are included in the TMS320C55x series.In order to use it, it has 240 terminations.Using 1.6V as the supply voltage, it operates.240 components have pins.The configuration of this board includes 240 pins.The base part number 32VC5510 allows identification of a wide range of related parts.Specifically, the device is designed to operate at a frequency of 200MHz.Surface Mount is the method of mounting it.The characteristics of this device allow it to be placed in the subcategory of Digital Signal Processors.Devices like this can be powered with as little as 1.55V volts.It is capable of receiving a maximum voltage of 3.6V.3.3V is the supply voltage for this device.There is a memory on this device that can store 32kB data.It is also possible to add additional features to ALSO REQUIRES 3.3V SUPPLY with the help of this electronic component.Industrial environments use 2 timers to provide accurate feedback and event activation.External sources are causing 7 interrupts.Upon opening the device, there are 16 pieces of information stored.To prevent CPU overload, 6 DMA channels are used to transfer data.

SM32VC5510AGGWA2EP Features

Supplied in the 240-LFBGA package
Operating supply voltage of 3.3V
7 external interrupts

SM32VC5510AGGWA2EP Applications

There are a lot of Texas Instruments
SM32VC5510AGGWA2EP DSP applications.

Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
Signal processing for telecommunications
