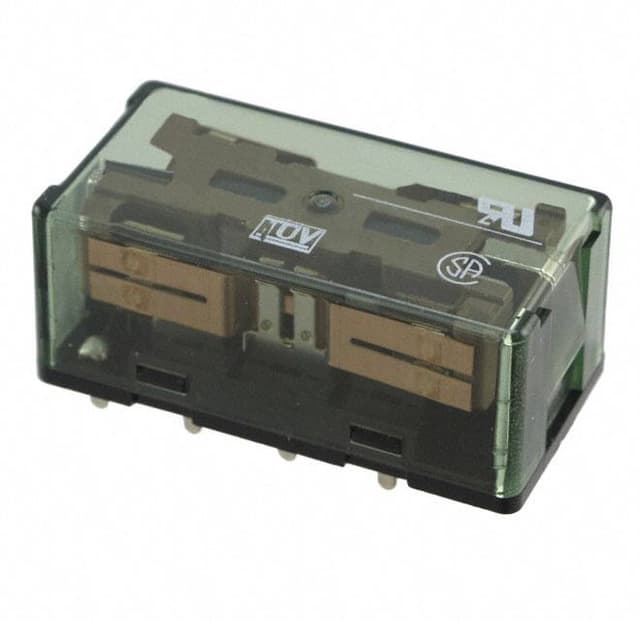

PANASONIC SP2-PL2-DC5V

Manufacturer No:

SP2-PL2-DC5V

Manufacturer:

PANASONIC

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SP2-PL2-DC5V information

PANASONIC SP2-PL2-DC5V technical specifications, attributes, parameters and parts with similar specifications to PANASONIC SP2-PL2-DC5V.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Through Hole

Mount
Through Hole

Contact Material
Silver Tin Oxide (AgSnO)

Number of Pins
10

Weight
50g

End Contact Plating
GOLD

Published
2003

Series
SP

Packaging
Tube

Operating Temperature
-50°C~60°C

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

Termination
PC Pin

Termination Style
PC Pin

Body Length or Diameter
51mm

Body Breadth
25.6 mm

Physical Dimension
51mm x 25.6mm x 22mm

Contact Resistance
30mOhm

Max Voltage Rating (AC)
250V

Max Current Rating
15A

Throw Configuration
DPDT

Max Voltage Rating (DC)
30V

Relay Type
General Purpose

Coil Resistance
83Ohm

Contact (AC) Max Rating R Load
15A@250VAC

Operate Time
30ms

Coil Voltage
5VDC

Coil Type
Latching, Dual Coil

Switching Voltage
250VAC 30VDC -Max

Coil Current
60.2mA

Release Time
20 ms

Must Operate Voltage
3.5VDC

Power Consumption
300mW

Coil Power
300mW

Contact/Output Supply Type
AC/DC

Relay Action
LATCHED

Coil Voltage (DC)
5V

Coil/Input Supply Type
DC

PCB Hole Count
10

Dielectric Strength Between Open Contacts
1500 Vrms

Input Switching Control Type
Random

Dielectric Strength Between Coil and Contacts
3000 Vrms

Contact (AC) Max Power Rating R Load
3750VA@250VAC

Contact (DC) Max Power Rating R Load
300W@30VDC

Body Height
22mm

Download datasheets and manufacturer documentation for PANASONIC SP2-PL2-DC5V.

PCN Packaging:

panasonicelectricworks-dsp1al2dc5v-pcnpackaging-9230.pdf

No product details available
