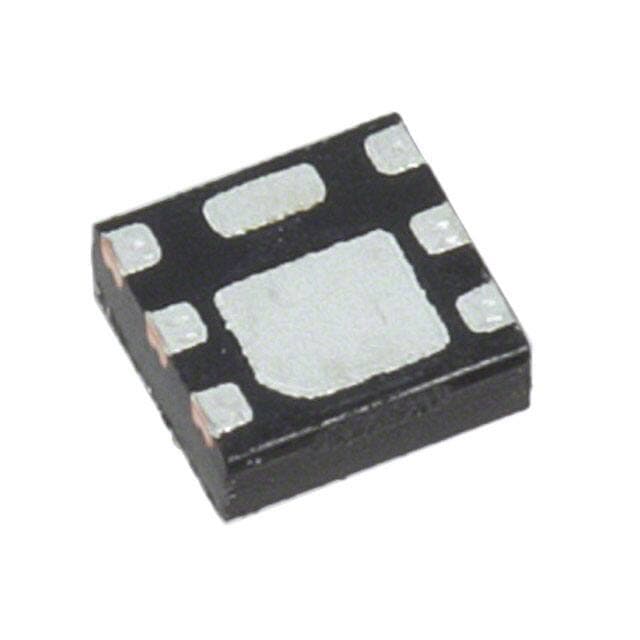

TOSHIBA SSM6K513NU,LF
TOSHIBA SSM6K513NU,LF

TOSHIBA SSM6K513NU,LF

Manufacturer No:

SSM6K513NU,LF

Manufacturer:

TOSHIBA

Package:

6-WDFN Exposed Pad

Description:

N-Channel Tape & Reel (TR) 8.9mOhm @ 4A, 10V ±20V 1130pF @ 15V 7.5nC @ 4.5V 30V 6-WDFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SSM6K513NU,LF information

TOSHIBA SSM6K513NU,LF technical specifications, attributes, parameters and parts with similar specifications to TOSHIBA SSM6K513NU,LF.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 6-WDFN Exposed Pad
  • Supplier Device Package
  • 6-UDFNB (2x2)
  • Current - Continuous Drain (Id) @ 25℃
  • 15A Ta
  • Drive Voltage (Max Rds On, Min Rds On)
  • 4.5V 10V
  • Power Dissipation (Max)
  • 1.25W Ta
  • Operating Temperature
  • 150°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • U-MOSIX-H
  • Published
  • 2016
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • FET Type
  • N-Channel
  • Rds On (Max) @ Id, Vgs
  • 8.9mOhm @ 4A, 10V
  • Vgs(th) (Max) @ Id
  • 2.1V @ 100μA
  • Input Capacitance (Ciss) (Max) @ Vds
  • 1130pF @ 15V
  • Gate Charge (Qg) (Max) @ Vgs
  • 7.5nC @ 4.5V
  • Drain to Source Voltage (Vdss)
  • 30V
  • Vgs (Max)
  • ±20V
  • Continuous Drain Current (ID)
  • 15A
  • Input Capacitance
  • 1.13nF
  • Rds On Max
  • 8.9 mΩ

Download datasheets and manufacturer documentation for TOSHIBA SSM6K513NU,LF.

Datasheets:

Product Description:

The SSM6K513NU,LF is a high-performance N-Channel MOSFET from Toshiba Semiconductor and Storage, designed for use in a wide range of applications. This discrete semiconductor product is a single MOSFET with a continuous drain current of 15A, making it suitable for high-power switching and amplification applications.

Features:

  • High continuous drain current of 15A
  • Drain to source voltage of 30V
  • Drive voltage of 4.5V to 10V
  • N-Channel FET type
  • Gate charge of 7.5nC at 4.5V
  • Input capacitance of 1.13nF
  • Power dissipation of 1.25W
  • Rds On of 8.9mOhm at 4A and 10V
  • Operating temperature range of -40°C to 150°C

Applications:

  • High-power switching and amplification applications
  • Motor control systems
  • Power supplies
  • Industrial automation systems

Alternative Parts:

  • SSM6K513NU,LF is a part of the U-MOSIX-H series from Toshiba Semiconductor and Storage. Other parts in this series may offer similar performance and features.

Embedded Modules:

  • This MOSFET is used in various embedded modules, including motor control systems, power supplies, and industrial automation systems.

Frequently Asked Questions (FAQs):

Q: What is the maximum continuous drain current of the SSM6K513NU,LF? A: The maximum continuous drain current is 15A.

Q: What is the maximum drain to source voltage of the SSM6K513NU,LF? A: The maximum drain to source voltage is 30V.

Q: What is the operating temperature range of the SSM6K513NU,LF? A: The operating temperature range is -40°C to 150°C.

Q: Is the SSM6K513NU,LF RoHS compliant? A: Yes, the SSM6K513NU,LF is RoHS compliant.

Q: What is the packaging type of the SSM6K513NU,LF? A: The packaging type is Tape & Reel (TR).
