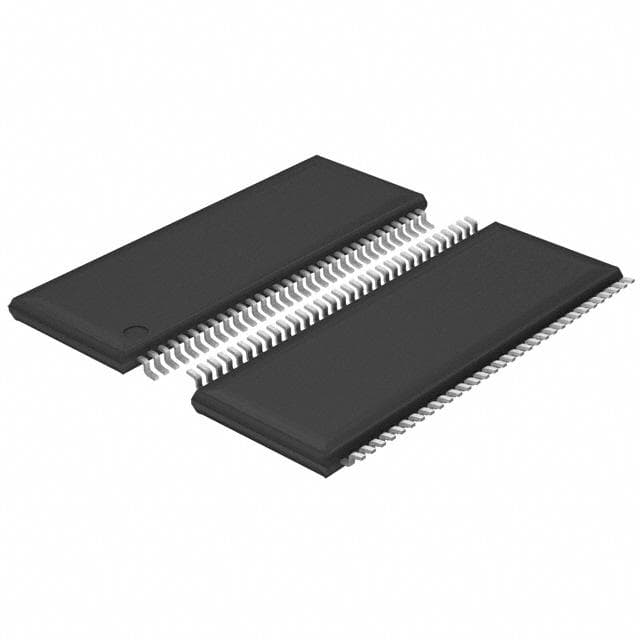

Renesas SSTVA16859CGLF
Renesas SSTVA16859CGLF

Renesas SSTVA16859CGLF

Manufacturer No:

SSTVA16859CGLF

Manufacturer:

Renesas

Package:

TSSOP

Description:

13 Bit Specialty Logic IC 64 Pin 0.5mm 2.5V TSSOP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SSTVA16859CGLF information

Renesas SSTVA16859CGLF technical specifications, attributes, parameters and parts with similar specifications to Renesas SSTVA16859CGLF.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Mount
  • Surface Mount
  • Package / Case
  • TSSOP
  • Number of Pins
  • 64
  • Published
  • 2008
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 64
  • ECCN Code
  • EAR99
  • Terminal Finish
  • MATTE TIN
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • HTS Code
  • 8542.39.00.01
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 2.5V
  • Terminal Pitch
  • 0.5mm
  • Pin Count
  • 64
  • Operating Supply Voltage
  • 2.7V
  • Polarity
  • Non-Inverting
  • Supply Voltage-Min (Vsup)
  • 2.3V
  • Number of Bits
  • 13
  • Family
  • SSTV
  • Logic Function
  • Buffer
  • Logic IC Type
  • D FLIP-FLOP
  • Trigger Type
  • POSITIVE EDGE
  • Propagation Delay (tpd)
  • 2.6 ns
  • fmax-Min
  • 210 MHz
  • Length
  • 17mm
  • Height Seated (Max)
  • 1.2mm
  • Width
  • 6.1mm
  • Thickness
  • 1mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas SSTVA16859CGLF.

Datasheets:

SSTVA16859CGLF Overview


A package called TSSOP contains it.It is necessary to supply voltage 2.5V to ensure that the device is capable of operating normally.Information can be stored in the memory at the rate of 13 bits.The total number of component pins equals 64.Using 64 terminations, signals are prevented from reverberating off the end of the transmission line.A Surface Mount mounting method is used.It is constructed using 64 pins.This device depends on the voltage of 2.7V supplied to it for operation.In addition to being optimized for high quality and reliability, the electronic part belongs to the family of SSTV.There is a need to ensure the operating temperature does not exceed the maximum 70°C.An essential requirement is that its operating temperature be not lower than 0°C.As a logic IC type, D FLIP-FLOP is adopted.
