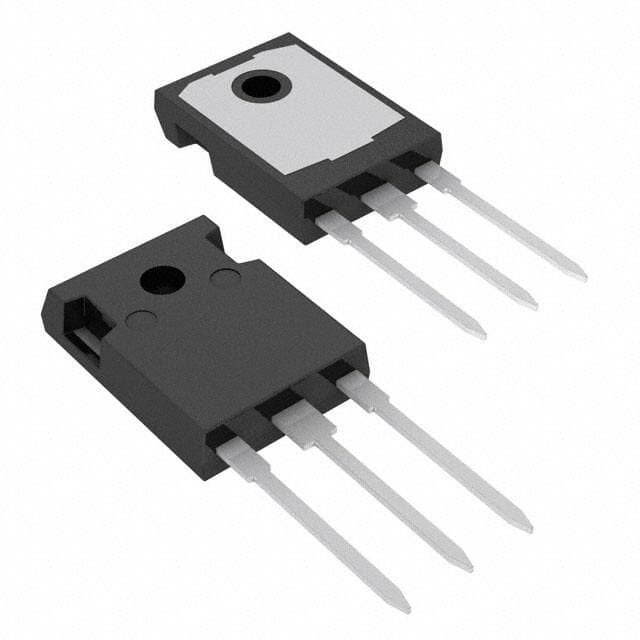

ST STGWA40S120DF3
ST STGWA40S120DF3

ST STGWA40S120DF3

Manufacturer No:

STGWA40S120DF3

Manufacturer:

ST

Package:

TO-247-3

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STGWA40S120DF3 information

ST STGWA40S120DF3 technical specifications, attributes, parameters and parts with similar specifications to ST STGWA40S120DF3.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 7 months ago)
  • Factory Lead Time
  • 32 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-247-3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~175°C TJ
  • Packaging
  • Tube
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Max Power Dissipation
  • 468W
  • Terminal Position
  • SINGLE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • STGWA40
  • JESD-30 Code
  • R-PSFM-T3
  • Number of Elements
  • 1
  • Configuration
  • SINGLE WITH BUILT-IN DIODE
  • Case Connection
  • COLLECTOR
  • Input Type
  • Standard
  • Power - Max
  • 468W
  • Transistor Application
  • POWER CONTROL
  • Collector Emitter Voltage (VCEO)
  • 2.15V
  • Max Collector Current
  • 80A
  • Reverse Recovery Time
  • 355 ns
  • Collector Emitter Breakdown Voltage
  • 1.2kV
  • Voltage - Collector Emitter Breakdown (Max)
  • 1200V
  • Turn On Time
  • 50 ns
  • Test Condition
  • 600V, 40A, 15 ?, 15V
  • Vce(on) (Max) @ Vge, Ic
  • 2.15V @ 15V, 40A
  • Turn Off Time-Nom (toff)
  • 158.46 ns
  • IGBT Type
  • Trench Field Stop
  • Gate Charge
  • 129nC
  • Current - Collector Pulsed (Icm)
  • 160A
  • Td (on/off) @ 25°C
  • 35ns/148ns
  • Switching Energy
  • 1.43mJ (on), 3.83mJ (off)
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ST STGWA40S120DF3.

Datasheets:

STGWA40S120DF3 Description


STGWA40S120DF3, part of the S series of 1200 V IGBTs, is a type of IGBT developed by STMicroelectronics based on an advanced proprietary trench gate field-stop structure. It is specifically designed to achieve maximal efficiency in low-frequency industrial systems. Due to its positive VCE(sat) temperature coefficient and tight parameter distribution, a safer paralleling operation can be achieved.



STGWA40S120DF3 Features


Available in the TO-247 package

Tight parameter distribution

Safer paralleling

Low thermal resistance

Soft and fast recovery antiparallel diode



STGWA40S120DF3 Applications


Industrial drives

UPS

Solar

Welding


User Guide
