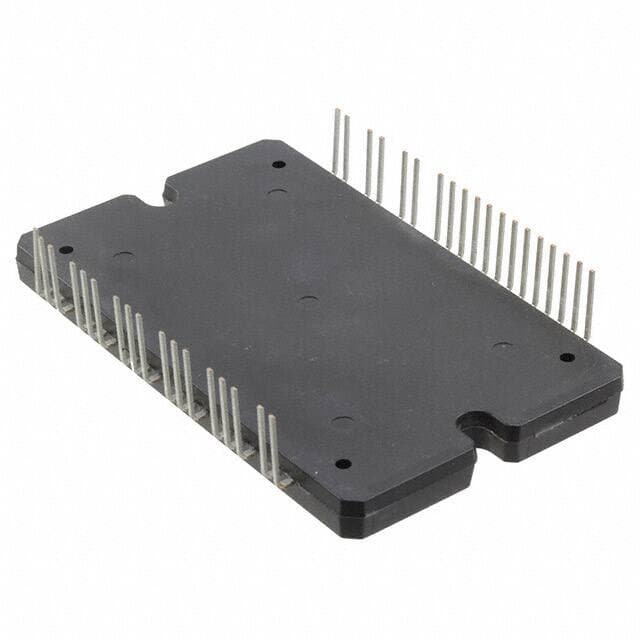

ONSEMI STK5F1U3E2D-E

Manufacturer No:

STK5F1U3E2D-E

Manufacturer:

ONSEMI

Package:

44-DIP Module, 37 Leads

Description:

Bulk 44-DIP Module, 37 Leads Logic 12.5V~17.5V Through Hole -20°C~150°C TJ AC Motors Half Bridge (3) Inductive 450V Max

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STK5F1U3E2D-E information

ONSEMI STK5F1U3E2D-E technical specifications, attributes, parameters and parts with similar specifications to ONSEMI STK5F1U3E2D-E.

Type
Parameter

Factory Lead Time
30 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
44-DIP Module, 37 Leads

Number of Pins
44

Weight
639.990485mg

Operating Temperature
-20°C~150°C TJ

Packaging
Bulk

Published
2016

JESD-609 Code
e2

Feature
Bootstrap Circuit, Status Flag

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
37

Terminal Finish
Tin/Nickel (Sn/Ni)

Applications
AC Motors

Subcategory
Motion Control Electronics

Technology
IGBT

Voltage - Supply
12.5V~17.5V

Terminal Position
DUAL

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

JESD-30 Code
R-XDMA-T37

Number of Outputs
1

Max Output Current
76A

Interface
Logic

Analog IC - Other Type
AC MOTOR CONTROLLER

Output Configuration
Half Bridge (3)

Output Current
50A

Output Current per Channel
50A

Supply Current-Max (Isup)
4mA

Collector Emitter Voltage (VCEO)
600V

Max Collector Current
50A

Voltage - Load
450V Max

Fault Protection
Current Limiting, UVLO

Switching Frequency
20kHz

Current - Peak Output
76A

Load Type
Inductive

Height
6mm

Length
76mm

Width
45mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI STK5F1U3E2D-E.

Datasheets:

onsemiconductor-stk5f1u3e2de-datasheets-0304.pdf

onsemiconductor-stk5f1u3e2de-datasheets-6140.pdf

onsemiconductor-stk5f1u3e2de-datasheets-6141.pdf

onsemiconductor-stk5f1u3e2de-datasheets-6142.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

STK5F1U3E2D-E Overview

Bulk is used for packaging.The 44-DIP Module, 37 Leads package includes H bridge to save money.The supply voltage of 12.5V~17.5V can improve reliabilbridge drivery.In the way of Through Hole, H bridge circuit is mounted.Motor driver H bridge's operating temperature enables -20°C~150°C TJ to function normally.Among H bridge motor drivers many uses, H bridge motor driver can be found in AC Motors as well.H gate is mounted on the PCB using Through Hole.As H bridge ic of its specific characteristics, it also possesses Bootstrap Circuit, Status Flag.Transmission lines are terminated with H bridges whose characteristic impedance matches their characteristic impedance, known as 37 terminations.In signal interfaces, 44 pins serve as pronged contacts.A voltage of 15V is used as the supply voltage.The analog IC type is AC MOTOR CONTROLLER.At a specified ambient temperature, 76A is the maximum load current that a power supply can provide.The output reaches a maximum current when H-bridge reaches 76A.A current of 50A flows through the pins of the output and power supply.There are 1 outputs on this Hbridge.This H bridge motor driver belongs to the subcategory of Motion Control Electronics and shares several similarities with other parts in that category.
