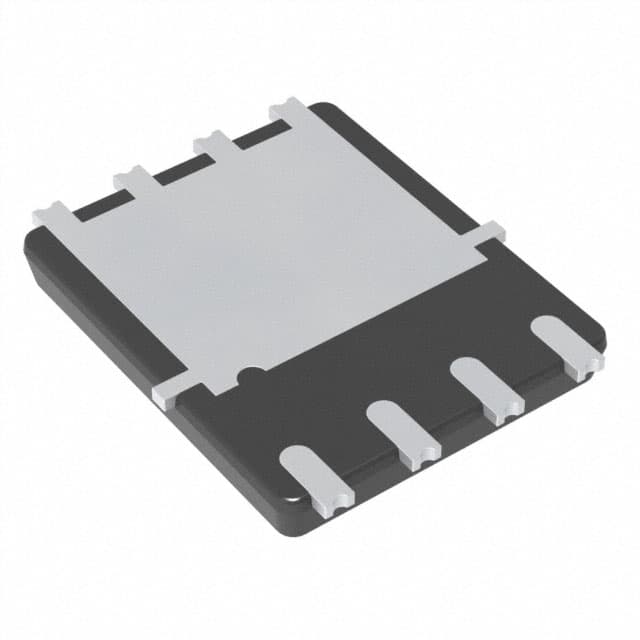

ST STLD200N4F6AG

Manufacturer No:

STLD200N4F6AG

Manufacturer:

Package:

8-PowerWDFN

Description:

Automotive-grade N-channel 40 V, 1.27 mOhm typ., 120 A STripFET F6 Power MOSFET in a PowerFLAT 5x6 dual side cooling package

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STLD200N4F6AG information

ST STLD200N4F6AG technical specifications, attributes, parameters and parts with similar specifications to ST STLD200N4F6AG.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Not Recommended

Ihs Manufacturer
STMICROELECTRONICS

Manufacturer Package Code
PowerFLAT 5x6 Dual Side Cooling

Reach Compliance Code
not_compliant

Factory Lead Time
4 Weeks

Samacsys Manufacturer
STMicroelectronics

Avalanche Energy Rating (Eas)
400 mJ

Case Connection
DRAIN

Configuration
SINGLE WITH BUILT-IN DIODE

DS Breakdown Voltage-Min
40 V

Drain Current-Max (ID)
120 A

Drain-source On Resistance-Max
0.002 Ω

FET Technology
METAL-OXIDE SEMICONDUCTOR

JESD-30 Code
R-PDSO-F5

Number of Elements
1

Number of Terminals
5

Operating Mode
ENHANCEMENT MODE

Operating Temperature-Max
175 °C

Operating Temperature-Min
-55 °C

Package Body Material
PLASTIC/EPOXY

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Power Dissipation-Max (Abs)
158 W

Pulsed Drain Current-Max (IDM)
480 A

Reference Standard
AEC-Q101

Surface Mount
YES

Terminal Form
FLAT

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Transistor Application
SWITCHING

Transistor Element Material
SILICON

Download datasheets and manufacturer documentation for ST STLD200N4F6AG.

Datasheets:

en.DM00263843.pdf

STLD200N4F6AG Description

STLD200N4F6AG belongs to the family of N-channel STripFET? F6 power MOSFET developed by STMicroelectronics utilizing the STripFET? F6 technology as well as a new trench gate structure. It is a kind of electronic device specifically designed for automotive applications. Low RDS (on) in all packages can be ensured.

STLD200N4F6AG Features

Low gate charge
Low on-resistance
Low gate drive power loss
High avalanche ruggedness
Supplied in the PowerFLAT? 5x6 dual-side cooling package

STLD200N4F6AG Applications

Switching applications
