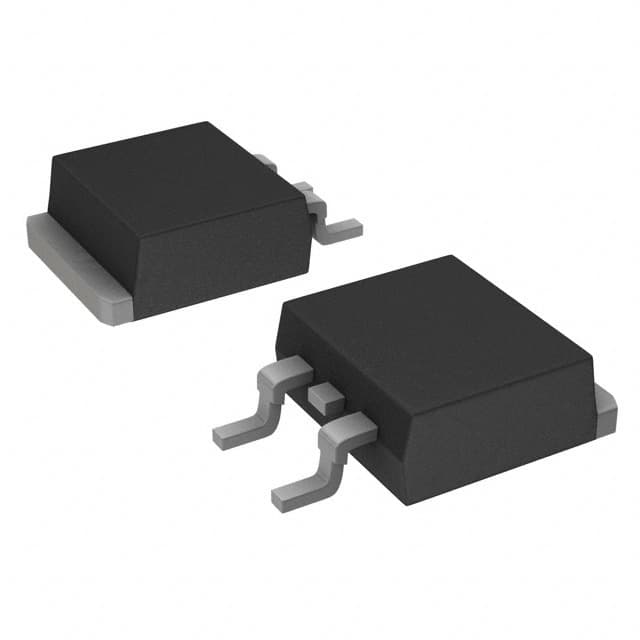

VISHAY SUD09P10-195-GE3
VISHAY SUD09P10-195-GE3

VISHAY SUD09P10-195-GE3

Manufacturer No:

SUD09P10-195-GE3

Manufacturer:

VISHAY

Package:

TO-252-3, DPak (2 Leads + Tab), SC-63

Description:

MOSFET (Metal Oxide) P-Channel Tape & Reel (TR) 195m ? @ 3.6A, 10V ±20V 1055pF @ 50V 34.8nC @ 10V 100V TO-252-3, DPak (2 Leads + Tab), SC-63

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SUD09P10-195-GE3 information

VISHAY SUD09P10-195-GE3 technical specifications, attributes, parameters and parts with similar specifications to VISHAY SUD09P10-195-GE3.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-252-3, DPak (2 Leads + Tab), SC-63
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Series
  • TrenchFET®
  • Published
  • 2010
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Resistance
  • 195mOhm
  • Terminal Finish
  • Matte Tin (Sn)
  • Subcategory
  • Other Transistors
  • Technology
  • MOSFET (Metal Oxide)
  • Terminal Position
  • SINGLE
  • Terminal Form
  • GULL WING
  • Pin Count
  • 4
  • JESD-30 Code
  • R-PSSO-G2
  • Number of Elements
  • 1
  • Number of Channels
  • 1
  • Power Dissipation-Max
  • 2.5W Ta 32.1W Tc
  • Operating Mode
  • ENHANCEMENT MODE
  • Power Dissipation
  • 2.5W
  • Case Connection
  • DRAIN
  • Turn On Delay Time
  • 7 ns
  • FET Type
  • P-Channel
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 195m ? @ 3.6A, 10V
  • Vgs(th) (Max) @ Id
  • 2.5V @ 250?A
  • Input Capacitance (Ciss) (Max) @ Vds
  • 1055pF @ 50V
  • Current - Continuous Drain (Id) @ 25°C
  • 8.8A Tc
  • Gate Charge (Qg) (Max) @ Vgs
  • 34.8nC @ 10V
  • Rise Time
  • 12ns
  • Drain to Source Voltage (Vdss)
  • 100V
  • Drive Voltage (Max Rds On,Min Rds On)
  • 4.5V 10V
  • Vgs (Max)
  • ±20V
  • Fall Time (Typ)
  • 9 ns
  • Turn-Off Delay Time
  • 33 ns
  • Continuous Drain Current (ID)
  • -8.8A
  • Threshold Voltage
  • -1V
  • Gate to Source Voltage (Vgs)
  • 20V
  • Drain to Source Breakdown Voltage
  • -100V

Download datasheets and manufacturer documentation for VISHAY SUD09P10-195-GE3.

Datasheets:

RohsStatement:

SUD09P10-195-GE3 Overview


The input capacitance parameter, CI, is defined as the capacitance between the input terminals of an op amp with either input grounded, and this device's maximal input capacitance is 1055pF @ 50V.The drain current is the maximum continuous current the device can conduct, and the continuous drain current (ID) of this device is -8.8A. Drain-source breakdown voltage is the VDS at which a specified value of ID flows, with VGS=-100V. And this device has -100V drain to source breakdown voltage.Turn-Off delay time is the time taken to charge the input capacitance of the device before drain current conduction can start, and its turn-off delay time is 33 ns.Turn-on delay time is the time taken to charge the input capacitance of the device before drain current conduction can start, and its delay time is 7 ns.The gate-source voltage, VGS, of a FET transistor is the voltage that falls across the gate-source terminal of the transistor and its voltage can be 20V.Threshold voltage is the point at which an electrical device is set to activate any one of its operations, and this transistor has -1V threshold voltage. Operating this transistor requires a 100V drain to source voltage (Vdss).By using drive voltage (4.5V 10V), this device helps reduce its overall power consumption.

SUD09P10-195-GE3 Features


a continuous drain current (ID) of -8.8A
a drain-to-source breakdown voltage of -100V voltage
the turn-off delay time is 33 ns
a threshold voltage of -1V
a 100V drain to source voltage (Vdss)


SUD09P10-195-GE3 Applications


There are a lot of Vishay Siliconix
SUD09P10-195-GE3 applications of single MOSFETs transistors.


  • LCD/LED TV
  • Consumer Appliances
  • Lighting
  • Uninterruptible Power Supply
  • AC-DC Power Supply
  • Synchronous Rectification for ATX 1 Server I Telecom PSU
  • Motor drives and Uninterruptible Power Supplies
  • Micro Solar Inverter
  • DC/DC converters
  • Power Tools
