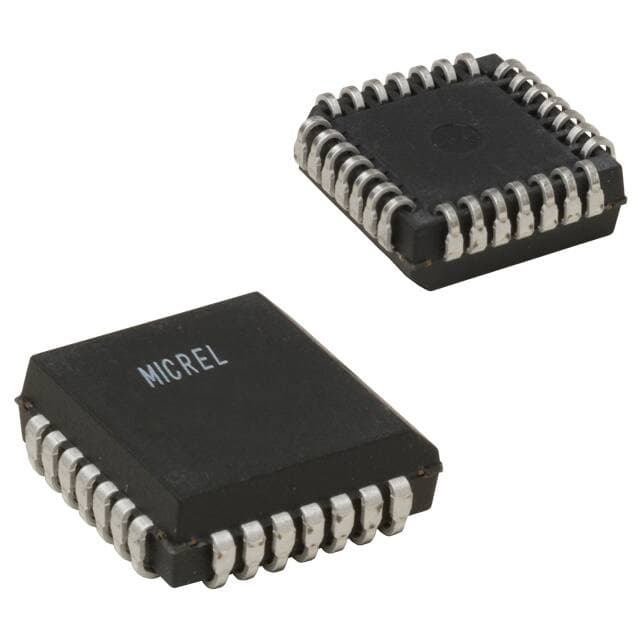

Microchip SY100H646LJZ

Manufacturer No:

SY100H646LJZ

Manufacturer:

Microchip

Package:

28-LCC (J-Lead)

Description:

1 Circuit 3.3V 2:8 Clock Buffer QUAD SY100H646 Precision Edge® Series 28-LCC (J-Lead)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY100H646LJZ information

Microchip SY100H646LJZ technical specifications, attributes, parameters and parts with similar specifications to Microchip SY100H646LJZ.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
28-LCC (J-Lead)

Number of Pins
28

Operating Temperature
0°C~85°C

Packaging
Tube

Series
Precision Edge®

Published
2000

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
28

Type
Fanout Buffer (Distribution), Multiplexer

Terminal Finish
MATTE TIN

Technology
ECL

Voltage - Supply
3V~3.6V

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Frequency
160MHz

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
SY100H646

Number of Outputs
8

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
3V

Number of Circuits
1

Input
PECL, TTL

Ratio - Input:Output
2:8

Differential - Input:Output
Yes/Yes

Propagation Delay (tpd)
3.25 ns

Same Edge Skew-Max (tskwd)
0.3 ns

Height Seated (Max)
4.57mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Microchip SY100H646LJZ.

SY100H646LJZ Overview

28-LCC (J-Lead) case is available for the cut smart buffer. In case Tube, the cut smart buffer is available. A total of 28 terminations have been found in it. The supply voltage of 3.3V is capable of providing high efficiency. If this is the case, it will be mounted as Surface Mount. This electronic part is classified as Fanout Buffer (Distribution), Multiplexer. If you wish to ensure reliable performance, you should set the temperature to 0°C~85°C. In general, it should be able to work with a power source of 3V~3.6V volts. There is a place for it in the way of Surface Mount. Buffer IC is TTL that is output. In order for the timeing clock to operate, it is connected to the 28 pins. The structure belongs to the SY100H646 family of structures. This value is set to 3.6V for the maximum available supply voltage (Vsup). A voltage higher than 3V is necessary for normal operation of the system. By default, the output of the circuit clock is set to 8. In this case, the electronic part belongs to the Precision Edge® series. It is recommended that the supply voltage be kept at 3.3V for maximum efficiency. As long as the frequency is 160MHz, excellent accuracy can be achieved.

SY100H646LJZ Features

28 terminations
The operating temperature of 0°C~85°C degrees
at 160MHz frequency

SY100H646LJZ Applications

There are a lot of Microchip Technology
SY100H646LJZ Clock Buffers & Drivers applications.

Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
Telecommunications
Computing
