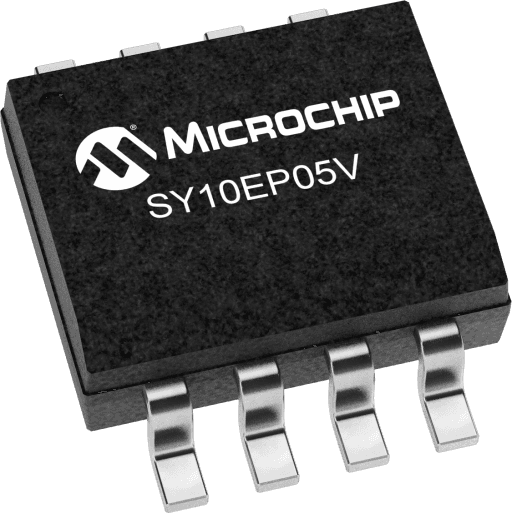

Microchip SY10EP05VZG

Manufacturer No:

SY10EP05VZG

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

3.3V/5V 4-input OR/NOR

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY10EP05VZG information

Microchip SY10EP05VZG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY10EP05VZG.

Type
Parameter

Description
2-Input Diff And/Nand Gate

Input
ECL

Supply Voltage
3.3/5

Max Freq (GHz)
0

Icc (mA)
0

OE
False

Input Mux
False

Number Of Outputs
0

Max Prop Delay (ps)
180

Download datasheets and manufacturer documentation for Microchip SY10EP05VZG.

Application Notes:

28e47621c3774d8713e580970ed13782.pdf

Data Sheets:

a27345c40cc1d86ebae3a80e8982f598.pdf

The SY10EP05V is a 2-input differential AND/NAND gate. The device is functionally equivalent to the EL05 device. With AC performance much faster that the EL05 device, the EP05V is ideal for applications requiring the fastest AC performance available.

3.3V or 5V power supply options
180ps typical propagation delay
Maximum frequency >3GHz typical
Internal input resistors: pulldown on D, pulldown and pullup on /D
Q output will default LOW with inputs open or at VEE
Transistor count: 126
Available in 8-pin MSOP and SOIC packages
