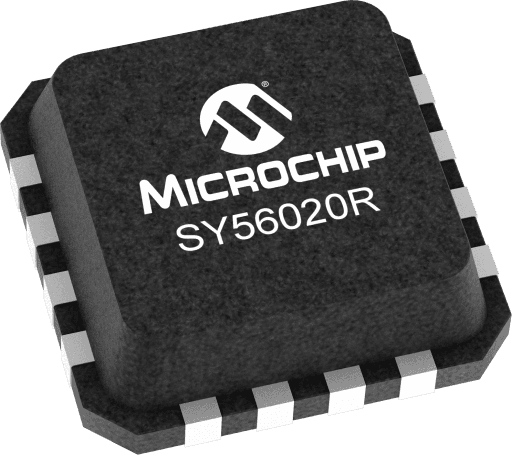

Microchip SY56020RMG

Manufacturer No:

SY56020RMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

1.2/1.8/2.5V LV CML 1:4 Fanout w/ Equalization

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY56020RMG information

Microchip SY56020RMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY56020RMG.

Type
Parameter

Description
1:04

Input
ANY

Output
CML

Supply Voltage
2.5

Max Freq (GHz)
4.5

Icc (mA)
60

Max Within Device Skew (ps)
15

OE
True

Input Mux
False

Number Of Outputs
0

Buffer Type
Fanout

Fanout
1:4

Max Prop Delay (ps)
280

Download datasheets and manufacturer documentation for Microchip SY56020RMG.

Data Sheets:

d9f5dc01198d57bfad1a2dde747fc7ee.pdf

User Guide:

5425c8ef88084e65777f210650ba4eea.pdf

The SY56020R is a fully-differential, low-voltage 1.2V/1.8V/2.5V CML 1:4 Fanout Buffer with input equalization. The SY56020R can process clock signals as fast as 4.5GHz or data patterns up to 6.4Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that interfaces to CML differential signals, without any level-shifting or termination resistor networks in the signal path. The differential input can also accept AC-coupled LVPECL and LVDS signals. Input voltages as small as 200mV (400mVpp) are applied before the 9", 18", or 27" FR4 transmission line. For AC-coupled input interface applications, an internal voltage reference is provided to bias the VT pin. The outputs are CML, with extremely fast rise/fall times guaranteed to be less than 90ps.The SY56020R operates from a 2.5V ±5% core supply and a 1.2V, 1.8V or 2.5V ±5% output supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). The SY56020R is part of Micrel's high-speed, Precision Edge® product line.

1.2V/1.8V/2.5V CML 1:4 Fanout Buffer
Equalizes 9, 18, 27 inches of FR4
DC-to >6.4Gbps Data throughput
DC-to >4.5GHz Clock throughput
<280 ps propagation delay (IN-to-Q)
<15ps within-device skew
<90ps rise/fall times
<1psRMS random jitter
High-speed CML outputs
2.5V ±5% VCC , 1.2/1.8V/2.5V ±5% VCCO power supply operation
Industrial temperature range: -40°C to +85°C
Available in 16-pin (3mm x 3mm) QFN package
